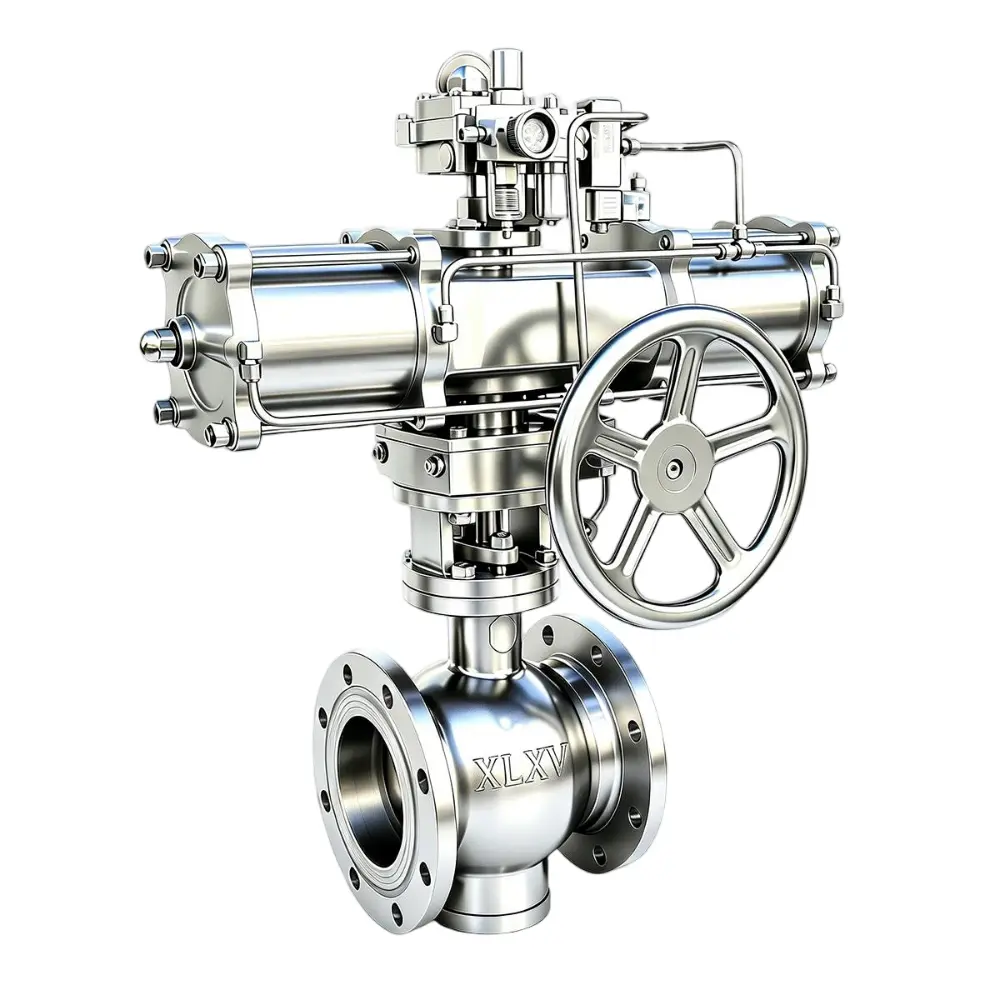

Flanged Pneumatic Eccentric Half Ball Valve

Nominal Diameter: DN50‑DN2000 (1″‑80″)
Nominal Pressure: PN10‑PN40 (Class150LB‑300LB)
Acting Type: Double-Acting / Single-Acting
Available Accessories: Solenoid Valve, Limit Switch, Air Filter Regulator
Body Materials: WCB, WC6, WC9, 304, 316L, HC, Alloy 20, 2205, 2507, 904L, 310S, TA2, etc.
Design & Manufacturing Standards: ASME B16.34, GB/T 12237, DIN 3357, API 608, etc.
Flange Standards: ASME B16.5, JIS B2220, EN 1092-1, HG/T 20592, etc.
Operating Temperature: −29°C – 425°C
Applicable Media: Slurry, coal slurry, pulp, sludge, mortar, media containing fine solid particles, fiber suspensions, and other abrasive or particle-laden fluids.

Product details

Pneumatic Eccentric Semi‑Ball Valve is a rotary‑type valve driven by a pneumatic actuator with an eccentric semi‑ball structure. The pneumatic actuator rotates the valve stem to turn the semi‑ball around the stem axis, achieving fast on‑off, shut‑off and flow regulation of process media.

Thanks to the eccentric design, the semi‑ball creates minimal friction against the seat during opening and closing. It features low operating torque, reliable sealing, excellent wear resistance and long service life. With a generally smooth flow passage, it is especially suitable for industrial piping systems handling complex media such as particles, slurry, wastewater, coal slurry and ash residue.

Pneumatic eccentric semi‑ball valves can be equipped with solenoid valves, limit switches, air filter‑regulator units, valve positioners and handwheel mechanisms. They can also be connected to automation control systems including PLC and DCS to realize remote automatic control.

Working Principle of Pneumatic Eccentric Semi‑Ball Valve:
Control signal → Pneumatic accessories → Pneumatic actuator → Valve stem rotation → Eccentric semi‑ball rotation → Valve On‑Off / Flow Regulation

Product Specifications

Pneumatic Shut‑off Ball Valve are 0‑90° rotary valves. They utilize pneumatic actuators to convert compressed air into rotary motion, delivering fast and reliable valve opening and closing for industrial process control.
According to specific application requirements, pneumatic ball valves can be equipped with solenoid valves, limit switches, position feedback devices, air filter‑regulators, valve positioners and other pneumatic instrument accessories to realize automatic valve control and remote monitoring functions.
Many factors shall be considered when selecting a pneumatic ball valve, including valve size, pressure rating, operating temperature, process medium, flow rate, body material, seat material, actuator type and control mode.
If you are looking for a qualified manufacturer or supplier of pneumatic ball valves, please contact our technical team and provide your operating conditions. Our valve engineers will recommend suitable pneumatic ball valves, actuators and control accessories based on your specific application requirements. （Unit: mm）

Pneumatic Eccentric Semi-Ball Valve – PN10-PN40

\ \ DN	NPS	\ \ Type/Class	\ \ Part No	\ \ \ L	D	D1	\ \ D2	b	t	Z-d0	Hw	Hd
50	2	PQ640Y-PN10	PQ640Y10XLX2	178	165	125	100	18	2	4-18	270	310
65	2.5	PQ640Y-PN10	PQ640Y10XLX2.5	190	185	145	120	18	2	4-18	280	320
80	3	PQ640Y-PN10	PQ640Y10XLX3	203	200	160	135	20	2	4-18	290	330
100	4	PQ640Y-PN10	PQ640Y10XLX4	229	220	180	156	22	2	8-18	330	380
125	5	PQ640Y-PN10	PQ640Y10XLX5	254	250	210	184	22	2	8-18	345	405
150	6	PQ640Y-PN10	PQ640Y10XLX6	267	285	240	211	24	2	8-22	370	440
200	8	PQ640Y-PN10	PQ640Y10XLX8	292	340	295	266	24	2	8-22	405	470
250	10	PQ640Y-PN10	PQ640Y10XLX10	330	395	350	319	26	2	12-22	480	540
300	12	PQ640Y-PN10	PQ640Y10XLX12	356	445	400	370	26	2	12-22	520	580
350	14	PQ640Y-PN10	PQ640Y10XLX14	430	505	460	429	26	2	16-22	570	630
400	16	PQ640Y-PN10	PQ640Y10XLX16	530	565	515	480	26	2	16-26	630	710
450	18	PQ640Y-PN10	PQ640Y10XLX18	580	615	565	530	28	2	20-26	690	770
500	20	PQ640Y-PN10	PQ640Y10XLX20	630	670	620	582	28	2	20-26	740	820
600	24	PQ640Y-PN10	PQ640Y10XLX24	800	780	725	682	34	2	20-30	840	940
700	28	PQ640Y-PN10	PQ640Y10XLX28	900	895	840	794	34	5	24-30	960	1040
800	32	PQ640Y-PN10	PQ640Y10XLX32	1000	1015	950	901	36	5	24-33	1080	1180
900	36	PQ640Y-PN10	PQ640Y10XLX36	1100	1115	1050	1001	38	5	28-33	1190	1280
1000	40	PQ640Y-PN10	PQ640Y10XLX40	1200	1230	1160	1112	38	5	28-36	1310	1420
1100	44	PQ640Y-PN10	PQ640Y10XLX44	1250	1345	1270	1222	42	5	28-36	1390	1480
1200	48	PQ640Y-PN10	PQ640Y10XLX48	1300	1455	1380	1328	44	5	32-39	1420	1530
1400	56	PQ640Y-PN10	PQ640Y10XLX56	1500	1675	1590	1530	48	5	36-42	1540	1650
1600	64	PQ640Y-PN10	PQ640Y10XLX64	1800	1915	1820	1750	52	5	40-48	1660	1750
1800	72	PQ640Y-PN10	PQ640Y10XLX72	2000	2115	2020	1950	56	5	44-48	1790	1860
2000	80	PQ640Y-PN10	PQ640Y10XLX80	2200	2325	2230	2150	60	5	48-48	1920	1990
50	2	PQ640Y-PN16	PQ640Y16XLX2	178	165	125	100	18	2	46130	270	310
65	2.5	PQ640Y-PN16	PQ640Y16XLX2.5	190	180	145	120	18	2	46130	280	320
80	3	PQ640Y-PN16	PQ640Y16XLX3	203	195	160	135	20	2	46130	290	330
100	4	PQ640Y-PN16	PQ640Y16XLX4	229	220	180	156	22	2	46252	330	380
125	5	PQ640Y-PN16	PQ640Y16XLX5	254	250	210	184	22	2	46252	345	405
150	6	PQ640Y-PN16	PQ640Y16XLX6	267	285	240	211	24	2	46256	370	440
200	8	PQ640Y-PN16	PQ640Y16XLX8	292	340	295	266	24	2	46378	405	470
250	10	PQ640Y-PN16	PQ640Y16XLX10	330	405	355	319	26	2	46382	480	540
300	12	PQ640Y-PN16	PQ640Y16XLX12	356	460	410	370	28	2	46382	520	580
350	14	PQ640Y-PN16	PQ640Y16XLX14	430	520	470	429	30	2	16-26	570	630
400	16	PQ640Y-PN16	PQ640Y16XLX16	530	580	525	480	32	2	16-30	630	710
450	18	PQ640Y-PN16	PQ640Y16XLX18	580	640	585	54B	40	2	20-30	690	770
500	20	PQ640Y-PN16	PQ640Y16XLX20	630	715	650	609	44	2	20-33	740	820
600	24	PQ640Y-PN16	PQ640Y16XLX24	800	840	770	720	54	2	20-36	840	940
700	28	PQ640Y-PN16	PQ640Y16XLX28	900	910	840	794	40	5	24-36	960	1040
800	32	PQ640Y-PN16	PQ640Y16XLX32	1000	1025	950	901	42	5	24-39	1080	1180
900	36	PQ640Y-PN16	PQ640Y16XLX36	1100	1125	1050	1001	44	5	28-39	1190	1280
1000	40	PQ640Y-PN16	PQ640Y16XLX40	1200	1255	1170	1112	46	5	28-42	1310	1420
1100	44	PQ640Y-PN16	PQ640Y16XLX44	1250	1370	1290	1222	48	5	28-42	1390	1480
1200	48	PQ640Y-PN16	PQ640Y16XLX48	1300	1485	1390	1328	52	5	32-48	1420	1530
1400	56	PQ640Y-PN16	PQ640Y16XLX56	1500	1685	1590	1530	58	5	36-48	1540	1650
1600	64	PQ640Y-PN16	PQ640Y16XLX64	1800	1930	1820	1750	64	5	40-55	1660	1750
1800	72	PQ640Y-PN16	PQ640Y16XLX72	2000	2130	2020	1950	68	5	44-55	1790	1860
2000	80	PQ640Y-PN16	PQ640Y16XLX80	2200	2345	2230	2150	70	5	48-60	1920	1990
50	2	PQ640Y-PN25	PQ640Y25XLX2	178	165	125	100	18	2	46130	270	310
65	2.5	PQ640Y-PN25	PQ640Y25XLX2.5	190	180	145	120	18	2	46130	280	320
80	3	PQ640Y-PN25	PQ640Y25XLX3	203	195	160	135	20	2	46130	290	330
100	4	PQ640Y-PN25	PQ640Y25XLX4	229	235	190	156	24	2	46256	330	380
125	5	PQ640Y-PN25	PQ640Y25XLX5	254	270	220	184	26	2	46260	345	405
150	6	PQ640Y-PN25	PQ640Y25XLX6	267	300	250	211	28	2	46260	370	440
200	8	PQ640Y-PN25	PQ640Y25XLX8	292	360	310	274	30	2	46382	405	470
250	10	PQ640Y-PN25	PQ640Y25XLX10	330	425	370	330	32	2	46386	480	540
300	12	PQ640Y-PN25	PQ640Y25XLX12	356	485	430	389	34	2	16-30	520	580
350	14	PQ640Y-PN25	PQ640Y25XLX14	430	555	490	44B	38	2	16-33	570	630
400	16	PQ640Y-PN25	PQ640Y25XLX16	530	620	550	503	40	3	16-36	630	710
450	18	PQ640Y-PN25	PQ640Y25XLX18	580	670	600	548	46	3	20-36	690	770
500	20	PQ640Y-PN25	PQ640Y25XLX20	630	730	660	609	48	3	20-36	740	820
600	24	PQ640Y-PN25	PQ640Y25XLX24	800	845	770	720	48	3	20-39	840	940
700	28	PQ640Y-PN25	PQ640Y25XLX28	900	960	875	820	50	5	24-42	960	1040
800	32	PQ640Y-PN25	PQ640Y25XLX32	1000	1085	990	92B	54	5	24-48	1080	1180
900	36	PQ640Y-PN25	PQ640Y25XLX36	1100	1185	1090	1028	5B	5	28-48	1190	1280
1000	40	PQ640Y-PN25	PQ640Y25XLX40	1200	1320	1210	1140	62	5	28-55	1310	1420
1100	44	PQ640Y-PN25	PQ640Y25XLX44	1250	1425	1315	1245	65	5	28-55	1390	1480
1200	48	PQ640Y-PN25	PQ640Y25XLX48	1300	1530	1420	1350	70	5	32-55	1420	1530
1400	56	PQ640Y-PN25	PQ640Y25XLX56	1500	1755	1640	1560	76	5	36-60	1540	1650
1600	64	PQ640Y-PN25	PQ640Y25XLX64	1800	1975	1860	1780	84	5	40-60	1660	1750
1800	72	PQ640Y-PN25	PQ640Y25XLX72	2000	2195	2070	1985	90	5	44-68	1790	1860
2000	80	PQ640Y-PN25	PQ640Y25XLX80	2200	2425	2300	2210	96	5	48-68	1920	1990
100	4	PQ640Y-PN40	PQ640Y40XLX4	229	235	190	156	24	2	46256	330	380
125	5	PQ640Y-PN40	PQ640Y40XLX5	254	270	220	184	26	2	46260	345	405
150	6	PQ640Y-PN40	PQ640Y40XLX6	267	300	250	211	28	2	46260	370	440
200	8	PQ640Y-PN40	PQ640Y40XLX8	292	375	320	284	34	2	46386	405	470
250	10	PQ640Y-PN40	PQ640Y40XLX10	330	450	385	345	38	2	12389	480	540
300	12	PQ640Y-PN40	PQ640Y40XLX12	356	515	450	409	42	2	16-33	520	580
350	14	PQ640Y-PN40	PQ640Y40XLX14	430	580	510	465	46	2	16-36	570	630
400	16	PQ640Y-PN40	PQ640Y40XLX16	530	660	585	535	50	2	16-39	630	710
450	18	PQ640Y-PN40	PQ640Y40XLX18	580	685	610	560	57	2	20-39	690	770
500	20	PQ640Y-PN40	PQ640Y40XLX20	660	755	670	615	57	2	20-42	740	820
600	24	PQ640Y-PN40	PQ640Y40XLX24	840	890	795	735	72	2	20-4B	840	940

Pneumatic Eccentric Semi‑Ball Valves adopt an eccentric semi‑ball structure and pneumatic drive. Featuring low operating torque, low friction, reliable sealing, good wear resistance, smooth flow passage and convenient automatic control, they are especially suitable for industrial piping systems handling particle‑laden, slurry and abrasive media.
