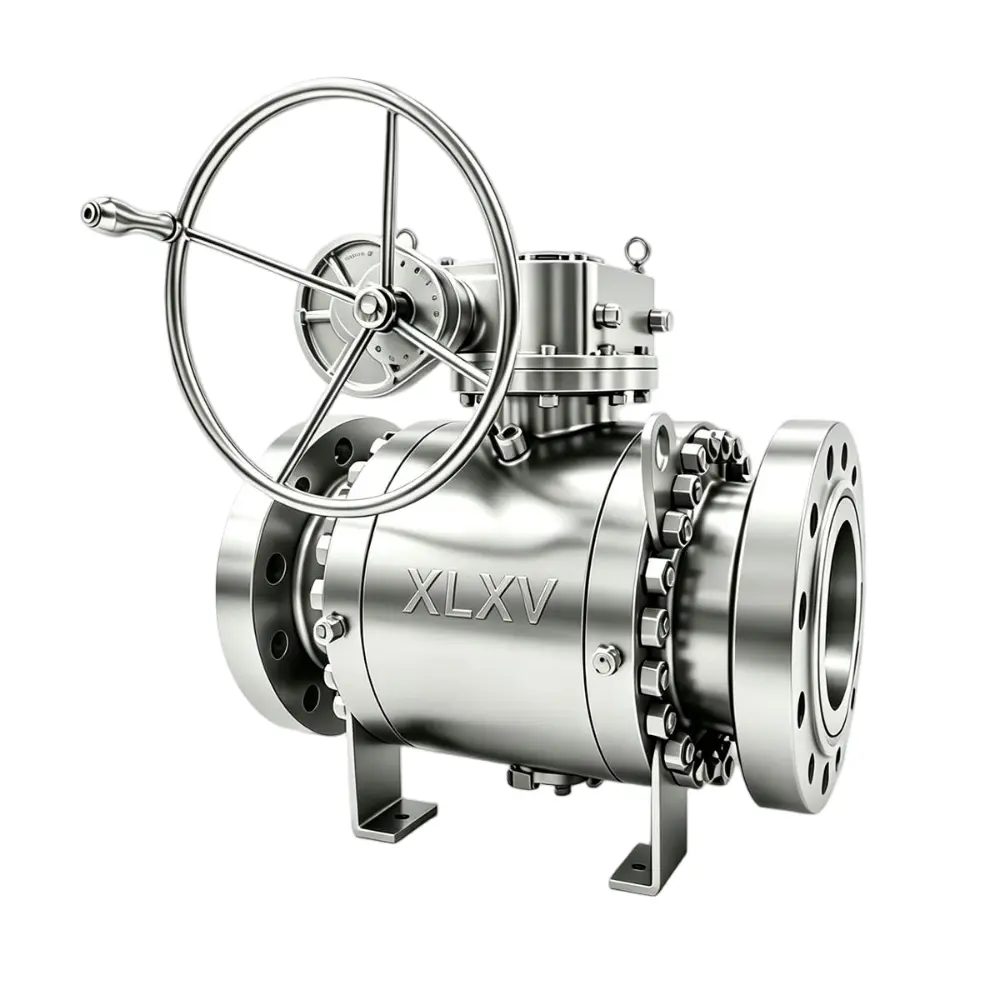

Forged Steel Floating Ball Valve | High-Pressure Floating Ball Valve

Forged Steel Floating Ball Valve | High-Pressure Floating Ball Valve
  • Nominal Diameter: DN40‑DN600 (1.5″‑24″)
  • Nominal Pressure: PN16‑PN250 (Class 150‑Class 1500)
  • Operation Mode: Handwheel, Gear Operator
  • Body Materials: A105, F11, F22, F304, F316L, N10002, F20, F60, F53, F904L, etc.
  • Seat Materials: PTFE, PPL, PEEK, Metal‑to‑Metal Seal
  • Design & Manufacturing Standards: ANSI B16.34, GB/T 12237, DIN 3357, API 608, etc.
  • Flange Standards: ASME B16.5, JIS B2220, EN 1092‑1, HG/T 20592, etc.
  • Operating Temperature: -40°C ~ 425°C
  • Applicable Media: Diesel, Gasoline, Lubricating oil, Nitrogen, Oxygen, Natural gas, Circulating water, Cooling water, Saturated steam, Superheated steam, Organic solvents, Weak acids and weak alkalis
For technical drawings and 3-D models, click on a part number.

Product details

Forged Steel Floating Ball Valve is a high‑performance ball valve with forged steel body and floating‑ball construction. Without trunnion shaft support, the ball is allowed limited floating displacement under process media pressure and pushed toward the downstream seat to achieve reliable tight shut‑off. It is categorized as an on‑off isolation valve for small‑to‑medium size and medium‑high pressure services.

Widely deployed in process pipelines of oil, chemical, power generation, oil‑gas and heating systems for media isolation and on‑off control.

Working Principle of Gear‑Operated Floating Ball Valve
The actuator drives the valve stem to rotate the ball through 0‑90°. Without trunnion support, the ball remains in a floating condition. Upon valve closure, process pressure pushes the ball against the downstream seat and compresses the sealing pair to realize tight shut‑off. In the fully‑open position, media flows straight through the passage; a 90° rotation shuts off the pipeline.

Product Specifications

Manual ball valves are widely used on piping systems for fast opening and closing, to cut off or connect fluid media stably. Accurate parameter confirmation including working temperature, medium, pressure and caliber is required before ordering for correct valve selection. Customized solutions on valve size, pressure rating, connection standard and body material are available to meet diverse non-standard working conditions.（Unit: mm）

Forged Steel Floating Ball Valve – 150LB-1500LB

NPSDNType/ClassPart NoLDKd1CHs
1.540ZYDQ41-150LBZYDQ41150XLX15165 125 98.4 73 12.7 135
250ZYDQ41-150LBZYDQ41150XLX2178 150 120.7 92 14.3 150
2.565ZYDQ41-150LBZYDQ41150XLX25190 180 139.7 105 15.9 180
380ZYDQ41-150LBZYDQ41150XLX3203 190 152.4 127 17.5 195
4100ZYDQ41-150LBZYDQ41150XLX4229 230 190.5 157 22.3 245
5125ZYDQ41-150LBZYDQ41150XLX5356 255 215.9 186 22.3 270
6150ZYDQ41-150LBZYDQ41150XLX6394 280 241.3 216 23.9 295
8200ZYDQ41-150LBZYDQ41150XLX8457 345 298.5 270 27.0 TBD
10250ZYDQ41-150LBZYDQ41150XLX10533 405 362 324 28.6 TBD
12300ZYDQ41-150LBZYDQ41150XLX12610 485 4318 381 30.2 TBD
14350ZYDQ41-150LBZYDQ41150XLX14686 535 476.3 413 33.4 TBD
16400ZYDQ41-150LBZYDQ41150XLX16762 595 539.8 470 35.0 TBD
18450ZYDQ41-150LBZYDQ41150XLX18864 635 577.9 533 38.1 TBD
20500ZYDQ41-150LBZYDQ41150XLX20914 700 635 584 41.3 TBD
24600ZYDQ41-150LBZYDQ41150XLX241067 815 749.3 692 46.3 TBD
1.540ZYDQ41-300LBZYDQ41300XLX15190 155 114.3 73 19.1 135
250ZYDQ41-300LBZYDQ41300XLX2216 165 127 92 20.7 150
2.565ZYDQ41-300LBZYDQ41300XLX25241 190 149.2 105 23.9 180
380ZYDQ41-300LBZYDQ41300XLX3282 210 168.3 127 27.0 195
4100ZYDQ41-300LBZYDQ41300XLX4305 255 200 157 30.2 250
5125ZYDQ41-300LBZYDQ41300XLX5356 280 235 186 33.4 280
6150ZYDQ41-300LBZYDQ41300XLX6403 320 269.9 216 35.0 300
8200ZYDQ41-300LBZYDQ41300XLX8502 380 330.2 270 39.7 TBD
10250ZYDQ41-300LBZYDQ41300XLX10568 445 387.4 324 46.1 TBD
12300ZYDQ41-300LBZYDQ41300XLX12648 520 450.8 381 49.3 TBD
14350ZYDQ41-300LBZYDQ41300XLX14762 585 514.4 413 52.4 TBD
16400ZYDQ41-300LBZYDQ41300XLX16838 650 571.5 470 55.6 TBD
18450ZYDQ41-300LBZYDQ41300XLX18914 710 628.6 533 58.8 TBD
20500ZYDQ41-300LBZYDQ41300XLX20991 775 685.8 584 62.0 TBD
1.540ZYDQ41-600LBZYDQ41600XLX15241 155 114.3 90 22.3 160
250ZYDQ41-600LBZYDQ41600XLX2292 165 127 108 25.4 180
2.565ZYDQ41-600LBZYDQ41600XLX25330 190 149.2 127 28.6 200
380ZYDQ41-600LBZYDQ41600XLX3356 210 168.3 146 31.8 240
4100ZYDQ41-600LBZYDQ41600XLX4432 275 215.9 175 38.1 270
5125ZYDQ41-600LBZYDQ41600XLX5508 330 266.7 210 44.5 320
6150ZYDQ41-600LBZYDQ41600XLX6559 355 292.1 241 47.7 TBD
8200ZYDQ41-600LBZYDQ41600XLX8660 420 349.2 302 55.6 TBD
10250ZYDQ41-600LBZYDQ41600XLX10787 510 431.8 356 63.5 TBD
12300ZYDQ41-600LBZYDQ41600XLX12838 560 489.0 413 66.7 TBD
14350ZYDQ41-600LBZYDQ41600XLX14889 605 527.0 457 69.9 TBD
16400ZYDQ41-600LBZYDQ41600XLX16991 685 603.2 508 76.2 TBD
18450ZYDQ41-600LBZYDQ41600XLX181092 745 654.0 575 82.6 TBD
20500ZYDQ41-600LBZYDQ41600XLX201194 815 723.9 635 88.9 TBD
1.540ZYDQ41-900LBZYDQ41900XLX15305 180 123.8 73 31.8 160
250ZYDQ41-900LBZYDQ41900XLX2368 215 165.1 92 38.1 180
2.565ZYDQ41-900LBZYDQ41900XLX25419 245 190.5 105 41.3 200
380ZYDQ41-900LBZYDQ41900XLX3381 240 190.5 156 38.1 240
4100ZYDQ41-900LBZYDQ41900XLX4457 290 235.0 181 44.5 270
5125ZYDQ41-900LBZYDQ41900XLX5559 350 279.4 216 50.8 TBD
6150ZYDQ41-900LBZYDQ41900XLX6610 380 317.5 241 55.6 TBD
8200ZYDQ41-900LBZYDQ41900XLX8737 470 393.7 308 63.5 TBD
10250ZYDQ41-900LBZYDQ41900XLX10838 545 469.9 362 69.9 TBD
12300ZYDQ41-900LBZYDQ41900XLX12965 610 533.4 419 79.4 TBD
14350ZYDQ41-900LBZYDQ41900XLX141029 640 558.8 467 85.8 TBD
16400ZYDQ41-900LBZYDQ41900XLX161130 705 616.0 524 88.9 TBD
1.540ZYDQ41-1500LBZYDQ411500XLX15305 180 123.8 92 31.8 180
250ZYDQ41-1500LBZYDQ411500XLX2368 215 165.1 124 38.1 200
2.565ZYDQ41-1500LBZYDQ411500XLX25419 245 190.5 137 41.3 220
380ZYDQ41-1500LBZYDQ411500XLX3470 265 203.2 168 47.7 260
4100ZYDQ41-1500LBZYDQ411500XLX4546 310 241.3 194 54.0 290
5125ZYDQ41-1500LBZYDQ411500XLX5673 375 292.1 229 73.1 TBD
6150ZYDQ41-1500LBZYDQ411500XLX6705 395 317.5 248 82.6 TBD
8200ZYDQ41-1500LBZYDQ411500XLX8832 485 393.7 318 92.1 TBD

This forged steel floating ball valve adopts high‑density high‑strength forged steel body with excellent pressure resistance, suitable for medium‑high‑pressure industrial pipelines. Featuring trunnion‑free floating‑ball design, the ball is automatically pressed against the seat by process pressure to deliver stable and reliable sealing and bi‑directional shut‑off for pipeline isolation. Quick 90‑degree rotation realizes fast opening and closing. Equipped with full‑bore passage, it generates low flow resistance and minor pressure drop. Compact and lightweight for limited installation space. Multiple actuations including lever, gear operator, pneumatic and electric are available for flexible operation to meet diverse automation requirements.
