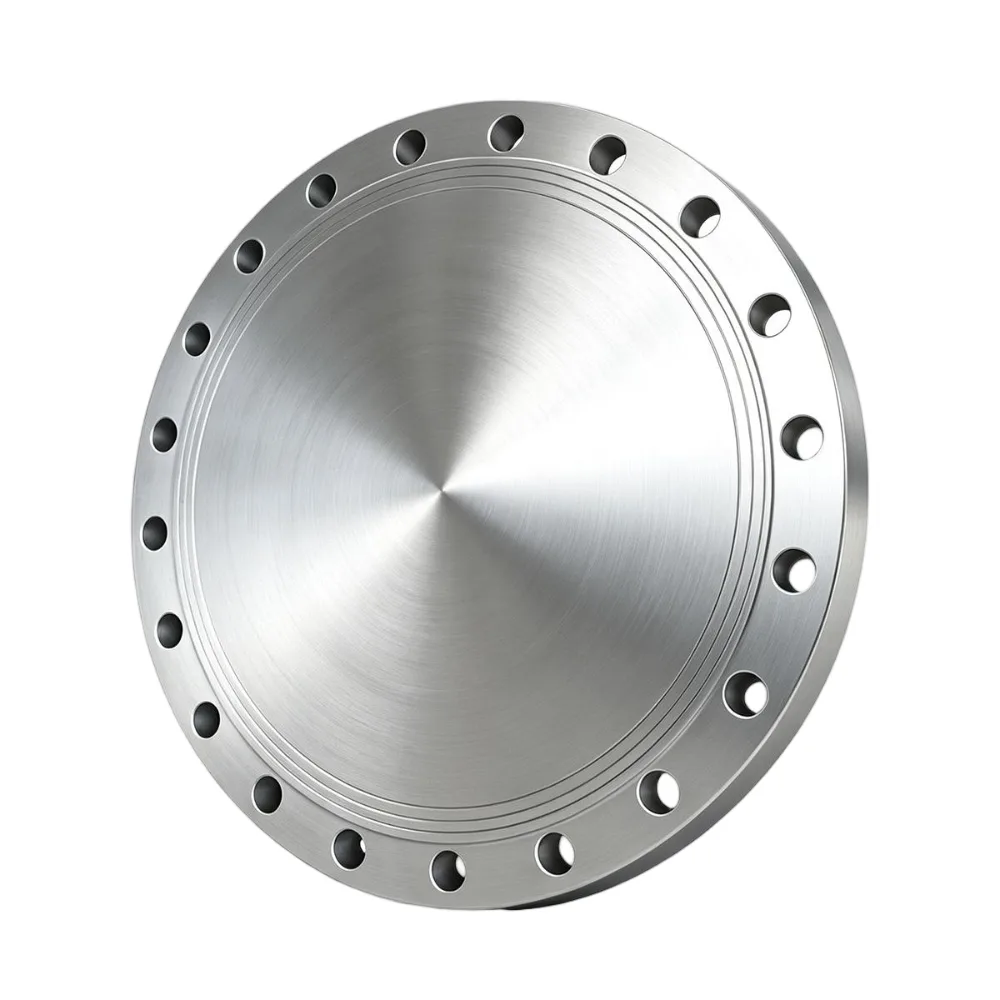

Large Diameter Blind Flange

Nominal Size (DN): DN650–DN1500 (NPS 26″–NPS 60″)
Nominal Pressure: PN20–PN150 (Class 150–Class 900)
Sealing Types:RF , RJ , M , FM , T , G
Applicable Standards: ASME B16.5, JIS B2220, EN 1092-1, HG/T 20592, etc.
Body Materials:304, 316L, Hastelloy C, Alloy 20, 2205, 2507, 904L, 310S, TA2, 20#, etc.
Applicable Media & Temperature Range: Water, neutral gases and liquids, alcohol, oil, fuel, steam, organic solvents, acidic and alkaline solutions (196°C to 1000°C)
Applicable Industries:Oil and gas, chemical industry, electric power, shipbuilding, food and beverage, pharmaceuticals, municipal water supply and drainage, building HVAC, metallurgy, environmental protection, etc.

Product details

Large-diameter blind flange (BL), also known as blanking flange or pipe end closure plate, is a solid circular flange without central bore, applicable for nominal diameter DN≥650 (NPS 26 and above). It is fastened by bolts and assembled with gaskets to connect matched pipe flanges, achieving tight leak-proof isolation and sealing.

A blind flange bears the full medium pressure inside pipelines, so its thickness is much larger than ordinary flanges with identical pressure ratings. It is widely adopted as a removable fitting for pipeline isolation, pressure testing, as well as temporary and permanent pipe end blocking, commonly used in oil & gas, chemical, power plant and water treatment industries.

Product Specifications

Note: The flange inner diameter (B) is determined by the wall thickness of the steel pipe and shall be specified by the user at the time of ordering.（Unit: mm）

ABL-150LB-900LB (Flange Series A / Flange Series B)

DN	NPS	Type/Class	Part No	A	D	K	L	Th	n	C	B	N	R	H
650	26	ABL-150LB-SFT	XLXABL150SFT26	660.4	870	806.4	36	M33	24	66.7	/	676	10	119
700	28	ABL-150LB-SFT	XLXABL150SFT28	711.2	925	863.6	36	M33	28	69.9	/	727	11	124
750	30	ABL-150LB-SFT	XLXABL150SFT30	762.0	985	914.4	36	M33	28	73.1	/	781	11	135
800	32	ABL-150LB-SFT	XLXABL150SFT32	812.8	1060	977.9	42	M39	28	79.4	/	832	11	143
850	34	ABL-150LB-SFT	XLXABL150SFT34	863.6	1110	1028.7	42	M39	32	81.0	/	883	13	148
900	36	ABL-150LB-SFT	XLXABL150SFT36	914.4	1170	1085.8	42	M39	32	88.9	/	933	13	156
950	38	ABL-150LB-SFT	XLXABL150SFT38	965.2	1240	1149.4	42	M39	32	85.8	/	991	13	156
1000	40	ABL-150LB-SFT	XLXABL150SFT40	1016.0	1290	1200.2	42	M39	36	88.9	/	1041	13	162
1050	42	ABL-150LB-SFT	XLXABL150SFT42	1066.8	1345	1257.3	42	M39	36	95.3	/	1092	13	170
1100	44	ABL-150LB-SFT	XLXABL150SFT44	1117.6	1405	1314.4	42	M39	40	100.1	/	1143	13	176
1150	46	ABL-150LB-SFT	XLXABL150SFT46	1168.4	1455	1365.2	42	M39	40	101.6	/	1197	13	184
1200	48	ABL-150LB-SFT	XLXABL150SFT48	1219.2	1510	1422.4	42	M39	44	106.4	/	1248	13	191
1250	50	ABL-150LB-SFT	XLXABL150SFT50	1270.0	1570	1479.6	48	M45	44	109.6	/	1302	13	202
1300	52	ABL-150LB-SFT	XLXABL150SFT52	1320.8	1625	1536.7	48	M45	44	114.3	/	1353	13	208
1350	54	ABL-150LB-SFT	XLXABL150SFT54	1371.6	1685	1593.8	48	M45	44	119.1	/	1403	13	214
1400	56	ABL-150LB-SFT	XLXABL150SFT56	1422.4	1745	1651.0	48	M45	48	122.3	/	1457	13	227
1450	58	ABL-150LB-SFT	XLXABL150SFT58	1473.2	1805	1708.2	48	M45	48	127.0	/	1508	13	233
1500	60	ABL-150LB-SFT	XLXABL150SFT60	1524.0	1855	1759.0	48	M45	52	130.2	/	1559	13	238
650	26	BBL-150LB-SFT	XLXBBL150SFT26	661.9	785	744.5	22	M20	36	39.8	/	684	10	87
700	28	BBL-150LB-SFT	XLXBBL150SFT28	712.7	835	795.3	22	M20	40	43.0	/	735	10	94
750	30	BBL-150LB-SFT	XLXBBL150SFT30	763.5	885	846.1	22	M20	44	43.0	/	787	10	98
800	32	BBL-150LB-SFT	XLXBBL150SFT32	814.3	940	900.1	22	M20	48	44.6	/	840	10	106
850	34	BBL-150LB-SFT	XLXBBL150SFT34	865.1	1005	957.3	26	M24	40	47.7	/	892	10	109
900	36	BBL-150LB-SFT	XLXBBL150SFT36	915.9	1055	1009.6	26	M24	44	50.9	/	945	10	116
950	38	BBL-150LB-SFT	XLXBBL150SFT38	968.2	1125	1070.0	30	M27	40	52.5	/	997	10	122
1000	40	BBL-150LB-SFT	XLXBBL150SFT40	1019.0	1175	1120.8	30	M27	44	54.1	/	1049	10	127
1050	42	BBL-150LB-SFT	XLXBBL150SFT42	1069.8	1225	1171.6	30	M27	48	57.3	/	1102	11	132
1100	44	BBL-150LB-SFT	XLXBBL150SFT44	1120.6	1275	1222.4	30	M27	52	58.9	/	1153	11	135
1150	46	BBL-150LB-SFT	XLXBBL150SFT46	1171.4	1340	1284.3	33	M30	40	60.4	/	1205	11	143
1200	48	BBL-150LB-SFT	XLXBBL150SFT48	1222.2	1390	1335.1	33	M30	44	63.6	/	1257	11	148
1250	50	BBL-150LB-SFT	XLXBBL150SFT50	1273.0	1445	1385.9	33	M30	48	66.8	/	1308	11	152
1300	52	BBL-150LB-SFT	XLXBBL150SFT52	1323.8	1495	1436.7	33	M30	52	68.4	/	1360	11	156
1350	54	BBL-150LB-SFT	XLXBBL150SFT54	1374.6	1550	1492.2	33	M30	56	70.0	/	1413	11	160
1400	56	BBL-150LB-SFT	XLXBBL150SFT56	1425.4	1600	1543.0	33	M30	60	71.6	/	1465	14	165
1450	58	BBL-150LB-SFT	XLXBBL150SFT58	1476.2	1675	1611.3	36	M33	48	73.1	/	1516	14	173
1500	60	BBL-150LB-SFT	XLXBBL150SFT60	1527.0	1725	1662.1	36	M33	52	74.7	/	1570	14	178
650	26	ABL-300LB-SFT	XLXABL300SFT26	660.4	970	876.3	45	M42	28	77.8	/	721	10	183
700	28	ABL-300LB-SFT	XLXABL300SFT28	711.2	1035	939.8	45	M42	28	84.2	/	775	11	195
750	30	ABL-300LB-SFT	XLXABL300SFT30	762.0	1090	997.0	48	M45	28	90.5	/	827	11	208
800	32	ABL-300LB-SFT	XLXABL300SFT32	812.8	1150	1054.1	51	M48	28	96.9	/	881	11	221
850	34	ABL-300LB-SFT	XLXABL300SFT34	863.6	1205	1104.9	51	M48	28	100.1	/	937	13	230
900	36	ABL-300LB-SFT	XLXABL300SFT36	914.4	1270	1168.4	55	M52	32	103.2	/	991	13	240
950	38	ABL-300LB-SFT	XLXABL300SFT38	965.2	1170	1092.2	42	M39	32	106.4	/	994	13	179
1000	40	ABL-300LB-SFT	XLXABL300SFT40	1016.0	1240	1155.7	45	M42	32	112.8	/	1048	13	192
1050	42	ABL-300LB-SFT	XLXABL300SFT42	1066.8	1290	1206.5	45	M42	32	117.5	/	1099	13	198
1100	44	ABL-300LB-SFT	XLXABL300SFT44	1117.6	1355	1263.6	48	M45	32	122.3	/	1149	13	205
1150	46	ABL-300LB-SFT	XLXABL300SFT46	1168.4	1415	1320.8	51	M48	28	127.0	/	1203	13	214
1200	48	ABL-300LB-SFT	XLXABL300SFT48	1219.2	1465	1371.6	51	M48	32	131.8	/	1254	13	222
1250	50	ABL-300LB-SFT	XLXABL300SFT50	1270.0	1530	1428.8	55	M52	32	138.2	/	1305	13	230
1300	52	ABL-300LB-SFT	XLXABL300SFT52	1320.8	1580	1479.6	55	M52	32	142.9	/	1356	13	237
1350	54	ABL-300LB-SFT	XLXABL300SFT54	1371.6	1660	1549.4	60	M56	28	150.9	/	1410	13	251
1400	56	ABL-300LB-SFT	XLXABL300SFT56	1422.4	1710	1600.2	60	M56	28	152.4	/	1464	13	259
1450	58	ABL-300LB-SFT	XLXABL300SFT58	1473.2	1760	1651.0	60	M56	32	157.2	/	1514	13	265
1500	60	ABL-300LB-SFT	XLXABL300SFT60	1524.0	1810	1701.8	60	M56	32	162.0	/	1565	13	271
650	26	BBL-300LB-SFT	XLXBBL300SFT26	665.2	865	803.3	36	M33	32	87.4	/	702	14	143
700	28	BBL-300LB-SFT	XLXBBL300SFT28	716.0	920	857.2	36	M33	36	87.4	/	756	14	148
750	30	BBL-300LB-SFT	XLXBBL300SFT30	768.4	990	920.8	39	M36×3	36	92.1	/	813	14	156
800	32	BBL-300LB-SFT	XLXBBL300SFT32	819.2	1055	977.9	42	M39×3	32	101.6	/	864	16	167
850	34	BBL-300LB-SFT	XLXBBL300SFT34	870.0	1110	1031.9	42	M39×3	36	101.6	/	918	16	171
900	36	BBL-300LB-SFT	XLXBBL300SFT36	920.8	1170	1089.0	45	M42x3	32	101.6	/	965	16	179
950	38	BBL-300LB-SFT	XLXBBL300SFT38	971.6	1220	1139.8	45	M42×3	36	109.6	/	1016	16	191
1000	40	BBL-300LB-SFT	XLXBBL300SFT40	1022.4	1275	1190.6	45	M42×3	40	114.3	/	1067	16	197
1050	42	BBL-300LB-SFT	XLXBBL300SFT42	1074.7	1335	1244.6	48	M45×3	36	117.5	/	1118	16	203
1100	44	BBL-300LB-SFT	XLXBBL300SFT44	1125.5	1385	1295.4	48	M45×3	40	125.5	/	1173	16	213
1150	46	BBL-300LB-SFT	XLXBBL300SFT46	1176.3	1460	1365.2	51	M48×3	36	127.0	/	1229	16	221
1200	48	BBL-300LB-SFT	XLXBBL300SFT48	1227.1	1510	1416.0	51	M48×3	40	127.0	/	1278	16	222
1250	50	BBL-300LB-SFT	XLXBBL300SFT50	1277.9	1560	1466.8	51	M48×3	44	136.6	/	1330	16	233
1300	52	BBL-300LB-SFT	XLXBBL300SFT52	1328.7	1615	1517.6	51	M48×3	48	141.3	/	1383	16	241
1350	54	BBL-300LB-SFT	XLXBBL300SFT54	1379.5	1675	1578.0	51	M48×3	48	145.0	/	1435	16	238
1400	56	BBL-300LB-SFT	XLXBBL300SFT56	1430.3	1765	1651.0	60	M56×3	36	152.4	/	1494	17	267
1450	58	BBL-300LB-SFT	XLXBBL300SFT58	1481.1	1825	1712.9	60	M56×3	40	152.4	/	1548	17	273
1500	60	BBL-300LB-SFT	XLXBBL300SFT60	1557.3	1880	1763.7	60	M56×3	40	149.3	/	1599	17	270
650	26	ABL-600LB-SFT	XLXABL600SFT26	660.4	1015	914.4	51	M48	28	108.0	/	748	13	222
700	28	ABL-600LB-SFT	XLXABL600SFT28	711.2	1075	965.2	55	M52	28	111.2	/	803	13	235
750	30	ABL-600LB-SFT	XLXABL600SFT30	762.0	1130	1022.4	55	M52	28	114.3	/	862	13	248
800	32	ABL-600LB-SFT	XLXABL600SFT32	812.8	1195	1079.5	60	M56	28	117.5	/	918	13	260
850	34	ABL-600LB-SFT	XLXABL600SFT34	863.6	1245	1130.3	60	M56	28	120.7	/	973	14	270
900	36	ABL-600LB-SFT	XLXABL600SFT36	914.4	1315	1193.8	68	M64	28	123.9	/	1032	14	283
950	38	ABL-600LB-SFT	XLXABL600SFT38	965.2	1270	1162.0	60	M56	28	152.4	/	1022	14	254
1000	40	ABL-600LB-SFT	XLXABL600SFT40	1016.0	1320	1212.8	60	M56	32	158.8	/	1073	14	264
1050	42	ABL-600LB-SFT	XLXABL600SFT42	1066.8	1405	1283.7	68	M64	28	168.3	/	1127	14	279
1100	44	ABL-600LB-SFT	XLXABL600SFT44	1117.6	1455	1333.5	68	M64	32	173.1	/	1181	14	289
1150	46	ABL-600LB-SFT	XLXABL600SFT46	1168	1510	1391	68	M64	32	179	/	1235	14	300
1200	48	ABL-600LB-SFT	XLXABL600SFT48	1219	1595	1461	74	M70	32	189	/	1289	14	316
1250	50	ABL-600LB-SFT	XLXABL600SFT50	1270	1670	1524	80	M76	28	197	/	1343	14	329
1300	52	ABL-600LB-SFT	XLXABL600SFT52	1321	1720	1575	80	M76	32	203	/	1394	14	337
1350	54	ABL-600LB-SFT	XLXABL600SFT54	1372	1780	1632	80	M76	32	210	/	1448	14	349
1400	56	ABL-600LB-SFT	XLXABL600SFT56	1422	1855	1695	86	M82	32	218	/	1502	16	362
1450	58	ABL-600LB-SFT	XLXABL600SFT58	1473	1905	1746	86	M82	32	222	/	1553	16	370
1500	60	ABL-600LB-SFT	XLXABL600SFT60	1524	1995	1822	94	M90	28	233	/	1610	17	389
650	26	BBL-600LB-SFT	XLXBBL600SFT26	660.4	890	806.4	48	M42×3	28	111.2	/	698	13	181
700	28	BBL-600LB-SFT	XLXBBL600SFT28	711.2	950	863.6	48	M45×3	28	115.9	/	752	13	190
750	30	BBL-600LB-SFT	XLXBBL600SFT30	762.0	1020	927.1	51	M48×3	28	125.5	/	806	13	205
800	32	BBL-600LB-SFT	XLXBBL600SFT32	812.8	1085	984.2	55	M52×3	28	130.2	/	860	13	216
850	34	BBL-600LB-SFT	XLXBBL600SFT34	863.6	1160	1054.1	60	M56×3	24	141.3	/	914	14	233
900	36	BBL-600LB-SFT	XLXBBL600SFT36	914.4	1215	1104.9	60	M56×3	28	146.1	/	968	14	243
650	26	ABL-900LB-SFT	XLXABL900SFT26	660.4	1085	952.5	74	M70	20	139.7	/	775	11	286
700	28	ABL-900LB-SFT	XLXABL900SFT28	711.2	1170	1022.4	80	M76	20	142.9	/	832	13	298
750	30	ABL-900LB-SFT	XLXABL900SFT30	762.0	1230	1085.9	80	M76	20	149.3	/	889	13	311
800	32	ABL-900LB-SFT	XLXABL900SFT32	812.8	1315	1155.7	86	M82	20	158.8	/	946	13	330
850	34	ABL-900LB-SFT	XLXABL900SFT34	863.6	1395	1225.6	94	M90	20	165.1	/	1006	14	349
900	36	ABL-900LB-SFT	XLXABL900SFT36	914.4	1460	1289.1	94	M90	20	171.5	/	1064	14	362
950	38	ABL-900LB-SFT	XLXABL900SFT38	965.2	1460	1289.1	94	M90	20	190.5	/	1073	19	352
1000	40	ABL-900LB-SFT	XLXABL900SFT40	1016.0	1510	1339.9	94	M90	24	196.9	/	1127	21	364
650	26	BBL-900LB-SFT	XLXBBL900SFT26	660.4	1020	901.7	68	M64×3	20	135.0	/	743	11	259
700	28	BBL-900LB-SFT	XLXBBL900SFT28	711.2	1105	971.6	74	M70×3	20	147.7	/	797	13	276
750	30	BBL-900LB-SFT	XLXBBL900SFT30	762.0	1180	1035.0	80	M76×3	20	155.6	/	851	13	289
800	32	BBL-900LB-SFT	XLXBBL900SFT32	812.8	1240	1092.2	80	M76×3	20	160.4	/	908	13	303
850	34	BBL-900LB-SFT	XLXBBL900SFT34	863.6	1315	1155.7	86	M82×3	20	171.5	/	962	14	319
900	36	BBL-900LB-SFT	XLXBBL900SFT36	914.4	1345	1200.2	80	M76×3	24	173.1	/	1016	14	325

RF (Raised Face) – The most widely used facing type in the market. Compatible with rubber, PTFE, and spiral-wound gaskets. Suitable for general-purpose service across most pressure and temperature ranges.

FF (Flat Face) – Designed with a full-face contact surface. Primarily used with low-pressure cast iron flanges to prevent flange distortion due to excessive bolt loading. Commonly applied in municipal water systems and low-pressure utility lines.

RTJ (Ring-Type Joint) – Features a precision-machined groove for accommodating metallic ring gaskets. Mandatory for high-pressure and high-temperature services (Class 900 and above). The preferred choice for large-bore hydrogen, high-temperature steam, and critical hydrocarbon lines where metal-to-metal sealing is required.
MFM (Male & Female Face) – Utilizes matched male and female mating surfaces. Effectively prevents gasket extrusion under high internal pressure. Recommended for aggressive corrosive media and erosive fluid services.

TG (Tongue & Groove Face) – Employs interlocking tongue-and-groove profiles. Offers excellent gasket retention and sealing stability. Ideally suited for severe service conditions involving strong corrosives, abrasive slurries, or cyclic thermal loading where gasket displacement must be minimized.
