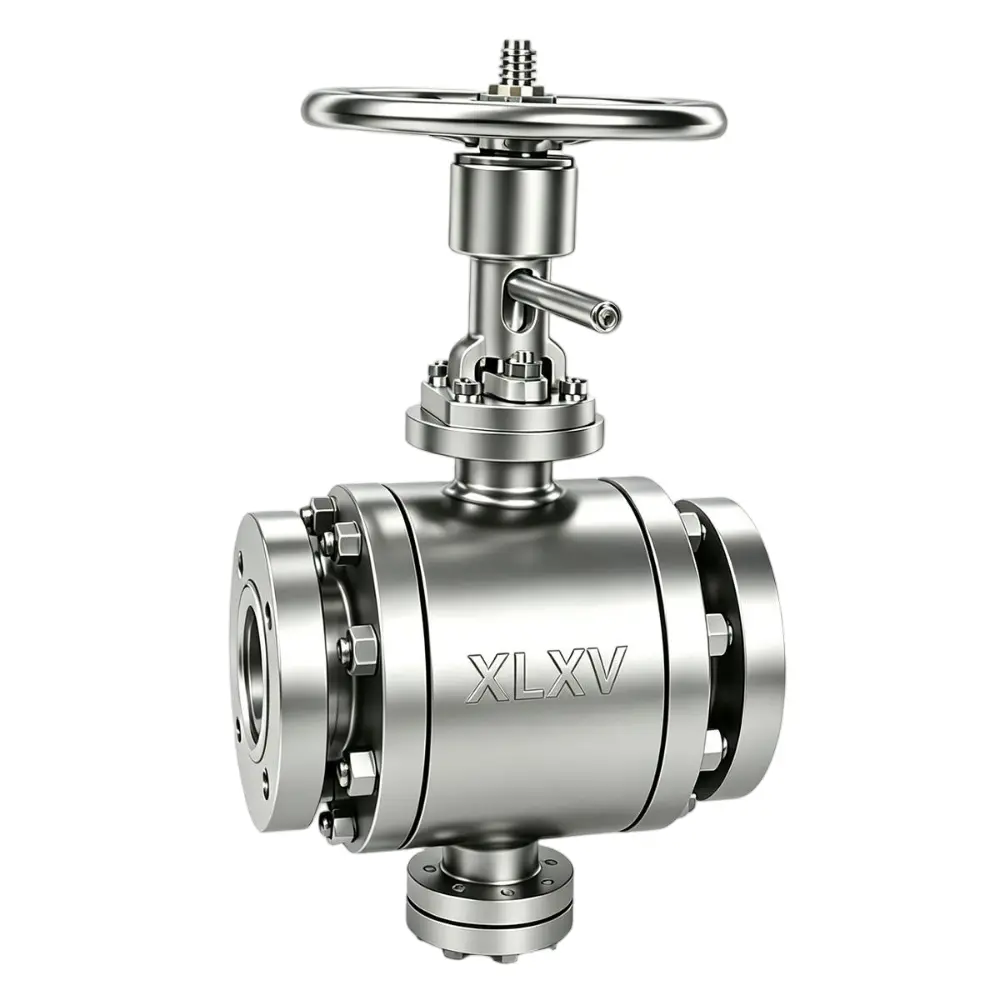

Manual Forged‑Steel Zero‑Friction Retractable Ball Valve

Manual Forged‑Steel Zero‑Friction Retractable Ball Valve

Nominal Diameter: DN50‑DN1200 (2″‑48″)
Nominal Pressure: PN16‑PN420 (Class 150‑Class 2500)
Operation: Handwheel‑Operated
Body Material: A105, F11, F22, F304, F316L, N10002, F20, F60, F53, F904L,,etc.
Seat Material: PTFE, PPL, PEEK, Metal‑to‑Metal Seat, etc.
Design & Manufacturing Standard: ANSI B16.34, GB/T 12237, DIN 3357, API 608, etc.
Flange Standard: ASME B16.5, JIS B2220, EN 1092‑1, HG/T 20592, etc.
Operating Temperature: ‑40°C ~ 538°C
Applicable Media: Particle‑free and non‑coking water, gas and oil.

Product details

Manual Forged‑Steel High‑Pressure Zero‑Friction Retractable Ball Valve is a high‑performance ball valve engineered for high‑pressure, severe‑service and highly‑reliable shut‑off applications. The valve body adopts forged‑steel construction with superior mechanical strength and pressure‑bearing capacity. Equipped with a separated axial‑lifting‑and‑rotation structure for the ball, the ball disengages from the seat prior to rotation during opening‑closing cycles, eliminating direct friction between the ball and seat as occurs in conventional ball valves.

Upon closure, after the ball is rotated to the closed position, it moves axially and presses firmly against the seat to form a dependable metal‑to‑metal or soft‑seat seal. This design effectively reduces operating torque, seat wear and the risk of sealing‑surface scratches during actuation. It is especially suitable for oil & gas, petrochemical, chemical, power‑generation and high‑pressure piping systems.

Working Principle of Manual Forged‑Steel High‑Pressure Zero‑Friction Retractable Ball Valve
Opening Process: Rotate the handwheel to drive the stem and the ball for axial movement. The ball first disengages from the seat and creates a clearance gap. After separation from the seat, the ball begins to rotate. When the ball bore is fully aligned with the pipeline axis, the valve reaches its fully‑open position. Media flows through the ball passage with low‑resistance transmission.

Closing Process: Rotate the handwheel to turn the ball to the closed position. The ball remains mostly separated from the seat during rotation to avoid continuous friction. Once the ball is in place, the stem pushes the ball axially. The ball is pressed against the seat in the axial direction, building up reliable sealing contact pressure to achieve tight shut‑off of the process media.

Product Specifications

Manual ball valves are widely used on piping systems for fast opening and closing, to cut off or connect fluid media stably. Accurate parameter confirmation including working temperature, medium, pressure and caliber is required before ordering for correct valve selection. Customized solutions on valve size, pressure rating, connection standard and body material are available to meet diverse non-standard working conditions.（Unit: mm）

Manual Forged‑Steel Zero‑Friction Retractable Ball Valve – 150LB-2500LB

DN	NPS	Type/Class	Part No	L1	D	K	Th	n-L	C	d1	f	P	E	F	d	w	X	y	Z
50	2	ZYDLSQ47-150LB	ZYDLSQ47150XLX2	178	150	120.7	M16	4-18	17.5	91.9	1.5	82.55	6.35	8.74
65	2.5	ZYDLSQ47-150LB	ZYDLSQ47150XLX2.5	190	180	139.7	M16	4-18	20.7	104.6	1.5	101.6	6.35	8.74
80	3	ZYDLSQ47-150LB	ZYDLSQ47150XLX3	203	190	152.4	M16	4-18	22.3	127	1.5	114.3	6.35	8.74
100	4	ZYDLSQ47-150LB	ZYDLSQ47150XLX4	229	230	190.5	M16	8-18	22.3	157.2	1.5	149.23	6.35	8.74
150	6	ZYDLSQ47-150LB	ZYDLSQ47150XLX6	394	280	241.3	M20	8-22	23.9	215.9	1.5	193.68	6.35	8.74
200	8	ZYDLSQ47-150LB	ZYDLSQ47150XLX8	457	345	298.58	M20	8-22	27.0	269.7	1.5	247.65	6.35	8.74
250	10	ZYDLSQ47-150LB	ZYDLSQ47150XLX10	533	405	362.0	M24	12-26	28.6	323.8	1.5	304.8	6.35	8.74
300	12	ZYDLSQ47-150LB	ZYDLSQ47150XLX12	610	485	431.8	M24	12-26	30.2	381	1.5	381	6.35	8.74
350	14	ZYDLSQ47-150LB	ZYDLSQ47150XLX14	686	535	476.2	M27	12-30	33.4	412.8	1.5	396.88	6.35	8.74
400	16	ZYDLSQ47-150LB	ZYDLSQ47150XLX16	762	595	539.8	M27	16-30	35.0	469.9	1.5	454.03	6.35	8.74
450	18	ZYDLSQ47-150LB	ZYDLSQ47150XLX18	864	635	577.9	M30	16-33	38.1	533.4	1.5	517.53	6.35	8.74
500	20	ZYDLSQ47-150LB	ZYDLSQ47150XLX20	914	700	635.0	M30	20-33	41.3	584.2	1.5	558.8	6.35	8.74
600	24	ZYDLSQ47-150LB	ZYDLSQ47150XLX24	1067	815	749.3	M33	20-36	46.1	692.2	1.5	673.1	6.35	8.74
650	26	ZYDLSQ47-150LB	ZYDLSQ47150XLX26	1143	870	806.4	M33	24-36	66.7
700	28	ZYDLSQ47-150LB	ZYDLSQ47150XLX28	1245	925	863.6	M33	28-36	69.9
750	30	ZYDLSQ47-150LB	ZYDLSQ47150XLX30	1295	985	914.4	M33	28-36	73.1
800	32	ZYDLSQ47-150LB	ZYDLSQ47150XLX32	1372	1060	977.9	M39	28-42	79.4
850	34	ZYDLSQ47-150LB	ZYDLSQ47150XLX34	1473	1110	1028.7	M39	32-42	81.0
900	36	ZYDLSQ47-150LB	ZYDLSQ47150XLX36	1524	1170	1085.8	M39	32-42	88.9
1000	40	ZYDLSQ47-150LB	ZYDLSQ47150XLX40	1753	1290	1200.2	M39	36-42	88.9
1050	42	ZYDLSQ47-150LB	ZYDLSQ47150XLX42	1855	1345	1257.3	M39	36-42	95.3
1200	48	ZYDLSQ47-150LB	ZYDLSQ47150XLX48	2134	1510	1422.4	M39	44-42	106.4
50	2	ZYDLSQ47-300LB	ZYDLSQ47300XLX2	216	165	127.0	M16	8-18	20.7	91.9	1.5	82.55	7.92	11.91	103	73	92.1	93.7	71.4
65	2.5	ZYDLSQ47-300LB	ZYDLSQ47300XLX2.5	241	190	149.2	M20	8-22	23.9	104.6	1.5	101.6	7.92	11.91	116	85.7	104.8	106.4	84.1
80	3	ZYDLSQ47-300LB	ZYDLSQ47300XLX3	282	210	168.3	M20	8-22	27.0	127	1.5	123.83	7.92	11.91	138	108	127	128.6	106.4
100	4	ZYDLSQ47-300LB	ZYDLSQ47300XLX4	305	255	200.0	M20	8-22	30.2	157.2	1.5	149.23	7.92	11.91	168	131.8	157.2	158.8	130.2
150	6	ZYDLSQ47-300LB	ZYDLSQ47300XLX6	457	320	269.9	M20	12-22	35.0	215.9	1.5	211.12	7.92	11.91	227	190.5	215.9	217.5	188.9
200	8	ZYDLSQ47-300LB	ZYDLSQ47300XLX8	502	380	330.2	M24	12-26	39.7	269.7	1.5	269.88	7.92	11.91	281	238.1	269.9	271.5	236.5
250	10	ZYDLSQ47-300LB	ZYDLSQ47300XLX10	568	445	387.4	M27	16-30	46.1	323.8	1.5	323.85	7.92	11.91	335	285.8	323.8	325.4	284.2
300	12	ZYDLSQ47-300LB	ZYDLSQ47300XLX12	648	520	450.8	M30	16-33	49.3	381	1.5	381	7.92	11.91	392	342.9	381	382.6	341.3
350	14	ZYDLSQ47-300LB	ZYDLSQ47300XLX14	762	585	514.4	M30	20-33	52.4	412.8	1.5	419.1	7.92	11.91	424	374.6	412.8	414.3	373.1
400	16	ZYDLSQ47-300LB	ZYDLSQ47300XLX16	838	650	571.5	M33	20-36	55.6	469.9	1.5	469.9	7.92	11.91	481	425.4	469.9	471.5	423..9
450	18	ZYDLSQ47-300LB	ZYDLSQ47300XLX18	914	710	628.6	M33	24-36	58.8	533.4	1.5	533.4	7.92	11.91	544	489	533.4	535	487.4
500	20	ZYDLSQ47-300LB	ZYDLSQ47300XLX20	991	775	685.8	M33	24-36	62.0	584.2	1.5	584.2	9.53	13.49	595	533.4	584.2	585.8	531.8
600	24	ZYDLSQ47-300LB	ZYDLSQ47300XLX24	1143	915	812.8	M39×3	24-42	68.3	692.2	1.5	692.15	11.13	16.66	703	641.4	692.2	693.7	639.8
650	26	ZYDLSQ47-300LB	ZYDLSQ47300XLX26	1245	970	876.3	M42	28-45	77.8
700	28	ZYDLSQ47-300LB	ZYDLSQ47300XLX28	1346	1035	939.8	M42	28-45	84.2
750	30	ZYDLSQ47-300LB	ZYDLSQ47300XLX30	1397	1090	997.0	M45	28-48	90.5
800	32	ZYDLSQ47-300LB	ZYDLSQ47300XLX32	1524	1150	1054.1	M48	28-51	96.9
850	34	ZYDLSQ47-300LB	ZYDLSQ47300XLX34	1626	1205	1104.9	M48	28-51	100.1
900	36	ZYDLSQ47-300LB	ZYDLSQ47300XLX36	1727	1270	1168.4	M52	32-55	103.2
1000	40	ZYDLSQ47-300LB	ZYDLSQ47300XLX40	1956	1240	1155.7	M42	32-45	112.8
1050	42	ZYDLSQ47-300LB	ZYDLSQ47300XLX42	2083	1290	1206.5	M42	32-45	117.5
1200	48	ZYDLSQ47-300LB	ZYDLSQ47300XLX48	2170	1465	1371.6	M48	32-51	131.8
50	2	ZYDLSQ47-600LB	ZYDLSQ47600XLX2	292	165	127.0	M16	8-18	25.4	91.9	6.4	82.55	7.92	11.91	103	73	92.1	93.7	71.4
65	2.5	ZYDLSQ47-600LB	ZYDLSQ47600XLX2.5	330	190	169.2	M20	8-22	28.6	104.6	6.4	101.6	7.92	11.91	116	85.7	104.8	106.4	84.1
80	3	ZYDLSQ47-600LB	ZYDLSQ47600XLX3	356	210	168.3	M20	8-22	31.8	127	6.4	123.83	7.92	11.91	138	108	127	128.6	106.4
100	4	ZYDLSQ47-600LB	ZYDLSQ47600XLX4	432	275	215.9	M24	8-26	38.1	157.2	6.4	149.23	7.92	11.91	168	131.8	157.2	158.8	130.2
150	6	ZYDLSQ47-600LB	ZYDLSQ47600XLX6	559	355	292	M27	12-30	48	215.9	6.4	211.12	7.92	11.91	227	190.5	215.9	217.5	188.9
200	8	ZYDLSQ47-600LB	ZYDLSQ47600XLX8	660	420	349	M30	12-33	56	269.7	6.4	269.88	7.92	11.91	281	238.1	269.9	271.5	236.5
250	10	ZYDLSQ47-600LB	ZYDLSQ47600XLX10	787	510	431	M33	16-36	64	323.8	6.4	323.85	7.92	11.91	335	285.8	323.8	325.4	284.2
300	12	ZYDLSQ47-600LB	ZYDLSQ47600XLX12	838	560	489	M33	20-36	67	381	6.4	381	7.92	11.91	392	342.9	381	382.6	341.3
350	14	ZYDLSQ47-600LB	ZYDLSQ47600XLX14	889	605	527	M36X3	20-39	70	412.8	6.4	419.1	7.92	11.91	424	374.6	412.8	414.3	373.1
400	16	ZYDLSQ47-600LB	ZYDLSQ47600XLX16	991	685	603	M39X3	20-42	76	469.9	6.4	469.9	7.92	11.91	481	425.4	469.9	471.5	423..9
450	18	ZYDLSQ47-600LB	ZYDLSQ47600XLX18	1092	745	654	M42X3	20-45	83	533.4	6.4	533.4	7.92	11.91	544	489	533.4	535	487.4
500	20	ZYDLSQ47-600LB	ZYDLSQ47600XLX20	1194	815	724	M42X3	24-45	89	584.2	6.4	584.2	9.53	13.49	595	533.4	584.2	585.8	531.8
600	24	ZYDLSQ47-600LB	ZYDLSQ47600XLX24	1397	940	838	M48X3	24-51	102	692.2	6.4	692.15	11.13	16.66	703	641.4	692.2	693.7	639.8
650	26	ZYDLSQ47-600LB	ZYDLSQ47600XLX26	1448	1015	914	M48	28-51	108
700	28	ZYDLSQ47-600LB	ZYDLSQ47600XLX28	1549	1075	965	M52	28-55	111
750	30	ZYDLSQ47-600LB	ZYDLSQ47600XLX30	1651	1130	1022	M52	28-55	114
800	32	ZYDLSQ47-600LB	ZYDLSQ47600XLX32	1778	1195	1080	M56	28-60	118
850	34	ZYDLSQ47-600LB	ZYDLSQ47600XLX34	1930	1245	1130	M56	28-60	121
900	36	ZYDLSQ47-600LB	ZYDLSQ47600XLX36	2083	1315	1194	M64	28-68	124
50	2	ZYDLSQ47-900LB	ZYDLSQ47900XLX2	368	215	165.1	M24	8-26	38.1	91.9	6.4	95.25	7.92	11.91	103	73	92.1	93.7	71.4
65	2.5	ZYDLSQ47-900LB	ZYDLSQ47900XLX2.5	419	245	190.5	M27	8-30	41.3	104.6	6.4	107.95	7.92	11.91	116	85.7	104.8	106.4	84.1
80	3	ZYDLSQ47-900LB	ZYDLSQ47900XLX3	381	240	190.5	M24	8-26	38.1	127	6.4	123.83	7.92	11.91	138	108	127	128.6	106.4
100	4	ZYDLSQ47-900LB	ZYDLSQ47900XLX4	457	290	235	M30	8-33	44.5	157.2	6.4	149.23	7.92	11.91	168	131.8	157.2	158.8	130.2
150	6	ZYDLSQ47-900LB	ZYDLSQ47900XLX6	610	380	317.5	M30	12-33	55.6	215.9	6.4	211.12	7.92	11.91	227	190.5	215.9	217.5	188.9
200	8	ZYDLSQ47-900LB	ZYDLSQ47900XLX8	737	470	393.7	M36x3	12-39	63.5	269.7	6.4	269.88	7.92	11.91	281	238.1	269.9	271.5	236.5
250	10	ZYDLSQ47-900LB	ZYDLSQ47900XLX10	838	545	469.9	M36x3	16-39	69.9	323.8	6.4	323.85	7.92	11.91	335	285.8	323.8	325.4	284.2
300	12	ZYDLSQ47-900LB	ZYDLSQ47900XLX12	965	610	533.4	M36x3	20-39	79.4	381	6.4	381	7.92	11.91	392	342.9	381	382.6	341.3
350	14	ZYDLSQ47-900LB	ZYDLSQ47900XLX14	1029	640	558.8	M39x3	20-42	85.8	412.8	6.4	419.1	11.13	16.66	424	374.6	412.8	414.3	373.1
400	16	ZYDLSQ47-900LB	ZYDLSQ47900XLX16	1130	705	616	M42x3	20-45	88.9	469.9	6.4	469.9	11.13	16.66	481	425.4	469.9	471.5	423..9
450	18	ZYDLSQ47-900LB	ZYDLSQ47900XLX18	1219	785	685.8	M48x3	20-51	101.6	533.4	6.4	533.4	12.7	19.84	544	489	533.4	535	487.4
500	20	ZYDLSQ47-900LB	ZYDLSQ47900XLX20	1321	855	749.3	M52x3	20-55	108.0	584.2	6.4	584.2	12.7	19.84	595	533.4	584.2	585.8	531.8
600	24	ZYDLSQ47-900LB	ZYDLSQ47900XLX24	1549	1040	901.7	M64x3	20-68	139.7	692.2	6.4	692.15	15.88	26.97	703	641.4	692.2	693.7	639.8
650	26	ZYDLSQ47-900LB	ZYDLSQ47900XLX26	1651	1085	952.5	M70	20-74	139.7
700	28	ZYDLSQ47-900LB	ZYDLSQ47900XLX28	1753	1170	1022.4	M76	20-80	142.9
750	30	ZYDLSQ47-900LB	ZYDLSQ47900XLX30	1880	1230	1085.9	M76	20-80	149.3
800	32	ZYDLSQ47-900LB	ZYDLSQ47900XLX32	2032	1315	1155.7	M82	20-86	158.8
850	34	ZYDLSQ47-900LB	ZYDLSQ47900XLX34	2159	1395	1225.6	M90	20-94	165.1
900	36	ZYDLSQ47-900LB	ZYDLSQ47900XLX36	2286	1460	1289.1	M90	20-94	171.5
50	2	ZYDLSQ47-1500LB	ZYDLSQ471500XLX2	368	215	165.1	M24	8-26	38.1	91.9	6.4	95.25	7.92	11.91	103	73	92.1	93.7	71.4
65	2.5	ZYDLSQ47-1500LB	ZYDLSQ471500XLX2.5	419	245	190.5	M27	8-30	41.3	104.6	6.4	107.95	7.92	11.91	116	85.7	104.8	106.4	84.1
80	3	ZYDLSQ47-1500LB	ZYDLSQ471500XLX3	470	265	203.2	M30	8-33	47.7	127	6.4	136.53	7.92	11.91	138	108	127	128.6	106.4
100	4	ZYDLSQ47-1500LB	ZYDLSQ471500XLX4	546	310	241.3	M33	8-36	54.0	157.2	6.4	161.93	7.92	11.91	168	131.8	157.2	158.8	130.2
150	6	ZYDLSQ47-1500LB	ZYDLSQ471500XLX6	705	395	317.5	M36x3	12-39	82.6	215.9	6.4	211.14	9.53	13.49	227	190.5	215.9	217.5	188.9
200	8	ZYDLSQ47-1500LB	ZYDLSQ471500XLX8	832	485	393.7	M42x3	12-45	92.1	269.7	6.4	269.88	11.13	16.66	281	238.1	269.9	271.5	236.5
250	10	ZYDLSQ47-1500LB	ZYDLSQ471500XLX10	991	585	482.6	M48x3	12-51	108.0	323.8	6.4	323.85	11.13	16.66	335	285.8	323.8	325.4	284.2
300	12	ZYDLSQ47-1500LB	ZYDLSQ471500XLX12	1130	675	571.5	M52x3	16-55	123.9	381	6.4	381	14.27	23.01	392	342.9	381	382.6	341.3
350	14	ZYDLSQ47-1500LB	ZYDLSQ471500XLX14	1257	750	635.0	M56x3	16-60	133.4	412.8	6.4	419.1	15.88	26.97	424	374.6	412.8	414.3	373.1
400	16	ZYDLSQ47-1500LB	ZYDLSQ471500XLX16	1384	825	704.8	M64x3	16-68	146.1	469.9	6.4	469.9	17.48	30.18	481	425.4	469.9	471.5	423..9
450	18	ZYDLSQ47-1500LB	ZYDLSQ471500XLX18	1537	915	774.7	M70x3	16-74	162.0	533.4	6.4	533.4	17.48	30.18	544	489	533.4	535	487.4
500	20	ZYDLSQ47-1500LB	ZYDLSQ471500XLX20	1664	985	831.8	M76x3	16-80	177.8	584.2	6.4	584.2	17.48	33.32	595	533.4	584.2	585.8	531.8
600	24	ZYDLSQ47-1500LB	ZYDLSQ471500XLX24	1943	1170	990.6	M90x3	16-94	203.2	692.2	6.4	692.15	20.62	36.53	703	641.4	692.2	693.7	639.8
50	2	ZYDLSQ47-2500LB	ZYDLSQ472500XLX2	451	235	171.4	M27	8-30	50.9	91.9	6.4	101.6	7.92	11.91	103	73	92.1	93.7	71.4
65	2.5	ZYDLSQ47-2500LB	ZYDLSQ472500XLX2.5	508	265	196.8	M30	8-33	57.2	104.6	6.4	111.13	9.52	13.49	116	85.7	104.8	106.4	84.1
80	3	ZYDLSQ47-2500LB	ZYDLSQ472500XLX3	578	305	228.6	M33	8-36	66.7	127	6.4	127	9.53	13.49	138	108	127	128.6	106.4
100	4	ZYDLSQ47-2500LB	ZYDLSQ472500XLX4	673	355	273.0	M39x3	8-42	76.2	157.2	6.4	157.18	11.13	16.66	168	131.8	157.2	158.8	130.2
150	6	ZYDLSQ47-2500LB	ZYDLSQ472500XLX6	914	485	358.3	M52x3	8-55	108.0	215.9	6.4	228.6	12.7	19.84	227	190.5	215.9	217.5	188.9
200	8	ZYDLSQ47-2500LB	ZYDLSQ472500XLX8	1022	550	438.2	M52x3	12-55	127.0	269.7	6.4	279.4	14.27	23.01	281	238.1	269.9	271.5	236.5
250	10	ZYDLSQ47-2500LB	ZYDLSQ472500XLX10	1270	675	539.8	M64x3	12-68	165.1	323.8	6.4	342.9	17.48	30.18	335	285.8	323.8	325.4	284.2
300	12	ZYDLSQ47-2500LB	ZYDLSQ472500XLX12	1422	760	619.1	M70x3	12-74	184.2	381	6.4	406.4	17.48	33.32	392	342.9	381	382.6	341.3

Main Features of High‑Pressure Zero‑Friction Retractable Ball Valve
Forged‑steel body for high pressure‑bearing capacity, friction‑free opening‑closing, low operating torque, extended seat service life, excellent adaptability to high‑pressure service, reliable sealing performance, improved operability under large pressure differentials, simple and dependable manual operation, suitable for severe‑service conditions.
