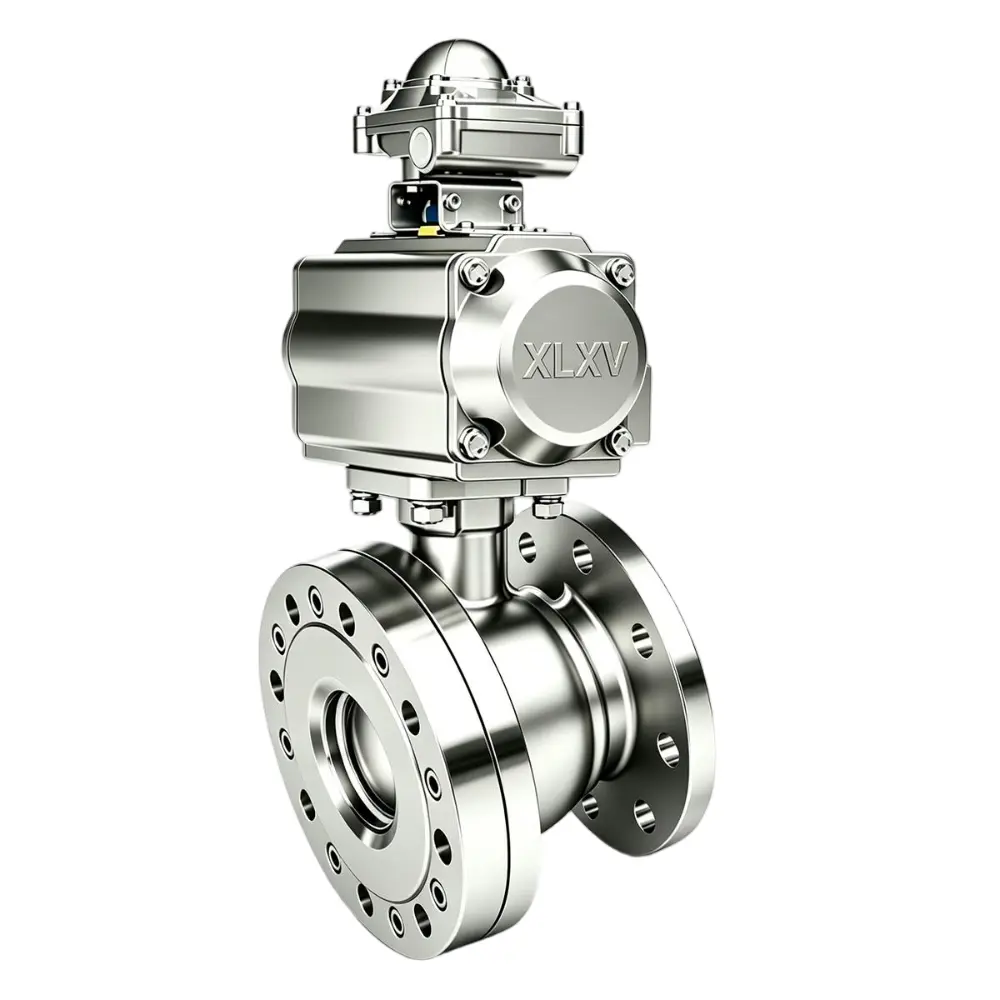

Pneumatic Inclined Bottom Drain Valve for Reactors

Pneumatic Inclined Bottom Drain Valve for Reactors
  • Nominal Size：DN25–DN200 (1″–8″)
  • Pressure Rating：PN16 (Class 150)
  • Actuation：Pneumatic
  • Available Accessories：Solenoid Valve, Limit Switch, Air Filter Regulator
  • Valve Body Materials：WCB, WC6, WC9, 304, 316L, Hastelloy C, Alloy 20, 2205, 2507, 904L, 310S, TA2, etc.
  • Manufacturing Standard：GB/T 12237
  • Flange Standard：ASME B16.5, JIS B2220, EN1092-1, HG/T 20592
  • Operating Temperature：-29°C to +425°C
  • Applicable Media：pharmaceutical liquid, crystalline mother liquor, fermentation broth, dairy products, syrup, organic solvents, salt solutions, lithium battery slurry, electrolyte, new polymer materials, various powder suspension liquids, etc.
For technical drawings and 3-D models, click on a part number.

Product details

Pneumatic Tilting Tank Bottom Discharge Valve is a pneumatic discharge valve specially installed at the bottom of reactors, storage tanks and pressure vessels. Adopting a tilting valve body structure, it forms a reasonable discharging angle between the valve flow passage and equipment bottom.

Driven by a pneumatic actuator, the valve plug can open or close rapidly to realize quick material discharge, shutoff and automatic control. The tilting flow passage reduces material retention and accumulation inside the valve cavity, making it especially suitable for high-viscosity, easily deposited, crystallizable media, as well as media containing solid particles or slurries.

Tank bottom discharge valves are widely used in chemical, fine chemical, pharmaceutical, food, dyestuff, pesticide, resin, coating industries and reactor discharging systems.

Working Principle of Pneumatic Tilting Tank Bottom Discharge Valve
The pneumatic tilting tank bottom discharge valve adopts a pneumatic actuator as the driving unit to control the valve stem and valve plug.Clean compressed air enters the pneumatic actuator to drive the internal piston, lifting or lowering the inclined valve plug via the valve stem.

  • Valve Opening: The actuator lifts the valve plug, fully opening the inclined straight flow path. Materials inside the reactor or tank are discharged by gravity.
  • Valve Closing: The actuator exhausts air (spring return for single-acting models), pressing the valve plug against the seat to cut off medium flow and achieve tight shutoff.



The inclined valve body connects smoothly with the tank bottom, minimizing dead space, medium sedimentation, crystallization and material buildup. Fitted with solenoid valves or positioners, it supports remote on-off control and flow regulation.

Product Specifications

Pneumatic Shut‑off Ball Valve are 0‑90° rotary valves. They utilize pneumatic actuators to convert compressed air into rotary motion, delivering fast and reliable valve opening and closing for industrial process control.
According to specific application requirements, pneumatic ball valves can be equipped with solenoid valves, limit switches, position feedback devices, air filter‑regulators, valve positioners and other pneumatic instrument accessories to realize automatic valve control and remote monitoring functions.
Many factors shall be considered when selecting a pneumatic ball valve, including valve size, pressure rating, operating temperature, process medium, flow rate, body material, seat material, actuator type and control mode.
If you are looking for a qualified manufacturer or supplier of pneumatic ball valves, please contact our technical team and provide your operating conditions. Our valve engineers will recommend suitable pneumatic ball valves, actuators and control accessories based on your specific application requirements. （Unit: mm）

Pneumatic Inclined Reactor Bottom Discharge Valve -150LB

DNNPSType/ClassPart NoLDD1D2CtN-zTERABHH1K*K
25 1XGFLQ641F-150LBXGFLQ641F150XLX1110 115 85 65 18 2 4-1421 130 85 50 42 83 12 11
32 1.25XGFLQ641F-150LBXGFLQ641F150XLX125116 140 100 78 18 2 4-1821 150 115 50 42 95 12 11
40 1.5XGFLQ641F-150LBXGFLQ641F150XLX15140 150 110 85 18 2 4-1820 150 150 70 50 123 15 14
50 2XGFLQ641F-150LBXGFLQ641F150XLX2140 165 125 100 20 2 4-1820 160 150 70 50 112 15 14
65 2.5XGFLQ641F-150LBXGFLQ641F150XLX2.5170 185 145 120 20 2 8-1823 180 150 102 70 125 18 17
80 3XGFLQ641F-150LBXGFLQ641F150XLX3190 200 160 135 20 2 8-1834 220 160 102 70 132 18 17
100 4XGFLQ641F-150LBXGFLQ641F150XLX4230 220 180 155 22 2 8-1840 230 185 125 102 160 23 22
125 5XGFLQ641F-150LBXGFLQ641F150XLX5250 250 210 188 22 3 8-1829 278 305 140 102 186 23 22
150 6XGFLQ641F-150LBXGFLQ641F150XLX6285 285 240 212 24 3 8-2235 327 350 140 102 210 28 27
200 8XGFLQ641F-150LBXGFLQ641F150XLX8350 340 295 268 24 3 12-2640 406 500 140 125 295 37 36

The inclined structure delivers thorough discharge, making the valve ideal for high-viscosity and easily deposited media. Pneumatic actuation provides rapid open/close operation. Dependable sealing minimizes medium leakage. It features high automation capability with flexible fail-safe configuration and broad application coverage.
