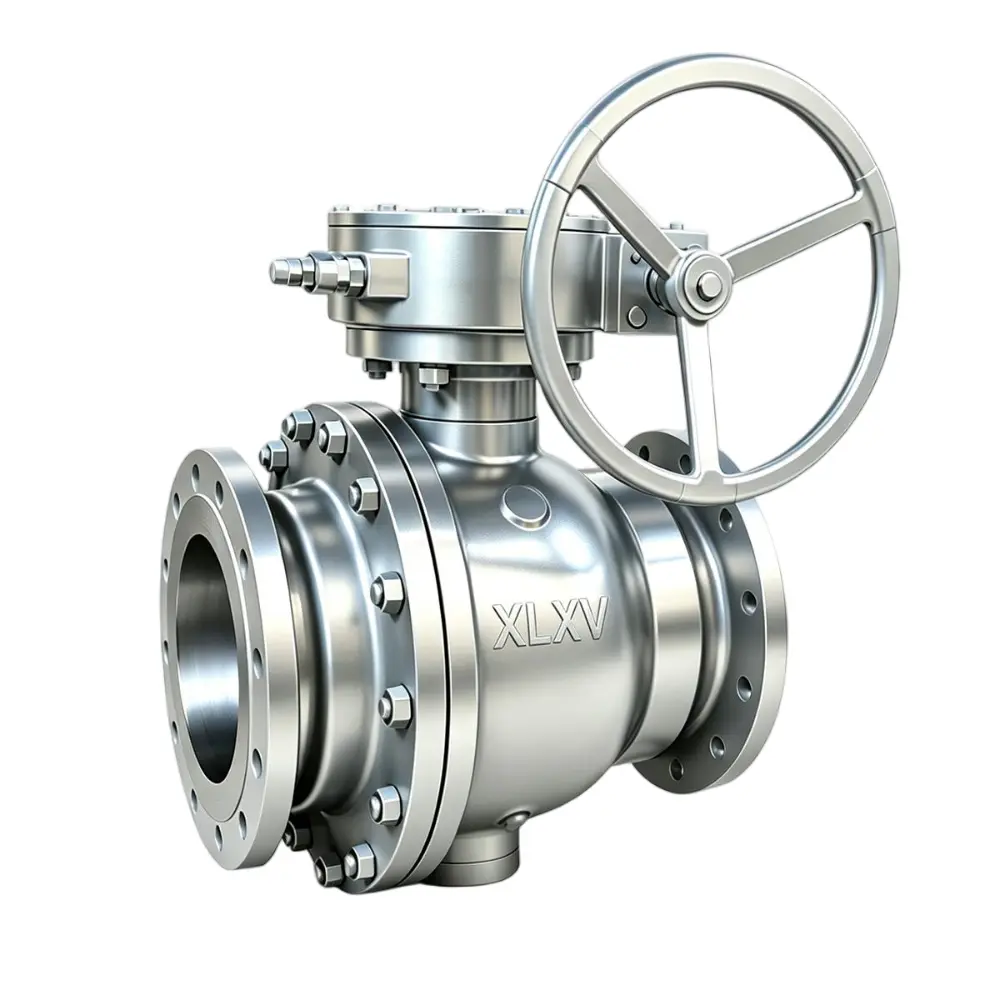

Trunnion-Mounted Metal-Seated Ball Valve | High-Pressure Fixed Ball Valve

Nominal Diameter: DN100-DN900 (4″-36″)
Nominal Pressure: PN16-PN420 (Class 150-Class 2500)
Operation: Handwheel, Gear operated
Body Material: WCB, WC6, WC9, 304, 316L, Hastelloy C, Alloy 20, 2205, 2507, 904L, 310S, TA2, etc.
Seat Material: Metal-to-Metal Seal
Manufacturing Standards: ANSI B16.34, GB/T 12237, DIN 3357, API 608, etc.
Flange Standards: ASME B16.5, JIS B2220, EN 1092-1, HG/T 20592, etc.
Operating Temperature: -40°C ~ 425°C
Applicable Media: Natural gas, oil, LPG, steam, thermal oil, high-temperature gas, hydrocarbons, organic solvents, acid and alkali media, corrosive media, etc.

Product details

Flanged Trunnion‑Mounted Metal‑Seated Ball Valve is a high‑performance ball valve featuring trunnion‑mounted ball structure, metal‑to‑metal hard‑seated seats and flanged end connections. The ball is secured by upper and lower trunnion supports. Loads induced by medium pressure are primarily borne by the trunnion‑bearing assembly, which reduces operational stress imposed on the stem and valve seats.

Equipped with metal‑to‑metal hard‑seated construction, the valve seats can be overlaid with wear‑resistant materials such as hard‑facing alloy and Stellite according to service conditions, delivering excellent resistance to high‑temperature, abrasion and erosion. The ball achieves quick shut‑off and flow‑switching by rotating 90° during opening‑closing cycles.

Working Principle of Flanged Trunnion‑Mounted Metal‑Seated Ball Valve
Opening Process: The actuator drives the stem to rotate, turning the ball approximately 90°, so that the ball bore gradually aligns with the pipeline passage. When the ball bore is fully connected to the pipeline, the valve reaches the fully‑open position, allowing free flow of the process medium through the ball port.

Closing Process: After the ball rotates 90° to the closed position, its bore is perpendicular to the pipeline axis. Reliable sealing contact is formed between the seat and the ball to cut off medium flow. The trunnion‑mounted structure effectively bears the pressure‑induced load from pipeline media and reduces operating torque, enabling stable and dependable opening‑closing performance even under high‑pressure service conditions.

Product Specifications

Manual ball valves are widely used on piping systems for fast opening and closing, to cut off or connect fluid media stably. Accurate parameter confirmation including working temperature, medium, pressure and caliber is required before ordering for correct valve selection. Customized solutions on valve size, pressure rating, connection standard and body material are available to meet diverse non-standard working conditions.（Unit: mm）

Trunnion-Mounted Metal-Seated Ball Valve -150LB-2500LB

NPS	DN	\ Type/Class	\ Part No	L-RF	L-RTJ	D	K	d1	C	f	n-L	\ H	H1	W
4	100	Q47H-150LB	Q47H150XLX4	229		229	190.5	157	24	1.6	8-19	330	135	300
5	125	Q47H-150LB	Q47H150XLX5	356		254	216	186	24	1.6	8-22	360	165	300
6	150	Q47H-150LB	Q47H150XLX6	394		279	241.5	216	25.5	1.6	8-22	392	193	300
8	200	Q47H-150LB	Q47H150XLX8	457		343	298.5	270	29	1.6	8-22	492	240	300
10	250	Q47H-150LB	Q47H150XLX10	533		406	362	324	31	1.6	12-25	548	293	300
12	300	Q47H-150LB	Q47H150XLX12	610		483	432	381	32	1.6	12-25	688	340	400
14	350	Q47H-150LB	Q47H150XLX14	686		533	476	413	35	1.6	12-29	722	372	400
16	400	Q47H-150LB	Q47H150XLX16	762		597	540	470	37	1.6	16-29	722	415	400
18	450	Q47H-150LB	Q47H150XLX18	864		635	578	533	40	1.6	19-32	804	462	500
20	500	Q47H-150LB	Q47H150XLX20	914		699	635	584	43	1.6	20-32	952	511	600
24	600	Q47H-150LB	Q47H150XLX24	1067		813	749.5	692	48	1.6	20-35	1154	601	750
26	650	Q47H-150LB	Q47H150XLX26	1143		786	744.5	711	40	1.6	36-22	1300	700	750
28	700	Q47H-150LB	Q47H150XLX28	1245		837	795.5	762	43	1.6	40-22	1550	780	750
30	750	Q47H-150LB	Q47H150XLX30	1295		887	846	813	43	1.6	44-22	1650	830	750
32	800	Q47H-150LB	Q47H150XLX32	1372		941	900	864	44	1.6	48-22	1740	870	750
36	900	Q47H-150LB	Q47H150XLX36	1524		1057	1009.5	972	51	1.6	44-26	1950	970	750
4	100	Q47H-300LB	Q47H300XLX4	305		254	200	157	32	1.6	8-22	340	140	300
5	125	Q47H-300LB	Q47H300XLX5	381		279	235	186	35	1.6	8-22	370	170	300
6	150	Q47H-300LB	Q47H300XLX6	403		318	270	216	37	1.6	12-22	402	192	300
8	200	Q47H-300LB	Q47H300XLX8	502		381	330	270	41.5	1.6	12-25	498	246	300
10	250	Q47H-300LB	Q47H300XLX10	568		445	387.5	324	48	1.6	16-29	655	303	400
12	300	Q47H-300LB	Q47H300XLX12	648		521	451	381	51	1.6	16-32	658	348	400
14	350	Q47H-300LB	Q47H300XLX14	762		584	514.5	413	54	1.6	20-32	686	378	400
16	400	Q47H-300LB	Q47H300XLX16	838		648	571.5	470	58	1.6	20-35	880	429	600
18	450	Q47H-300LB	Q47H300XLX18	914		711	628.5	533	61	1.6	24-35	1050	518	750
20	500	Q47H-300LB	Q47H300XLX20	991		775	686	584	64	1.6	24-35	1110	540	750
24	600	Q47H-300LB	Q47H300XLX24	1143		914	813	692	70	1.6	24-41	1400	650	750
26	650	Q47H-300LB	Q47H300XLX26	1245		867	803.5	737	87	1.6	32-35.5	1500	750	750
28	700	Q47H-300LB	Q47H300XLX28	1346		921	857	787	87	1.6	36-35.5	1600	800	750
30	750	Q47H-300LB	Q47H300XLX30	1397		991	921	845	92	1.6	36-39	1720	860	750
32	800	Q47H-300LB	Q47H300XLX32	1524		1054	978	902	102	1.6	32-42	1800	900	750
36	900	Q47H-300LB	Q47H300XLX36	1727		1172	1089	1010	102	1.6	32-45	2200	1020	600
2	50	Q47H-600LB	Q47H600XLX2	292	295	165	127	92	26	6.4	8-19	240	94	300
2.5	65	Q47H-600LB	Q47H600XLX25	330	333	190	149	105	29	6.4	8-22	290	115	300
3	80	Q47H-600LB	Q47H600XLX3	356	359	210	168	127	32	6.4	8-22	340	136	300
4	100	Q47H-600LB	Q47H600XLX4	432	435	273	216	157	38	6.4	8-25	358	152	300
5	125	Q47H-600LB	Q47H600XLX5	508	511	330	266.5	186	45	6.4	8-29	400	180	300
6	150	Q47H-600LB	Q47H600XLX6	559	562	356	292	216	48	6.4	12-29	445	209	400
8	200	Q47H-600LB	Q47H600XLX8	660	664	419	349	270	56	64	12-32	498	263	400
10	250	Q47H-600LB	Q47H600XLX10	787	791	508	432	324	64	6.4	16-35	653	312	400
12	300	Q47H-600LB	Q47H600XLX12	838	841	559	489	381	67	6.4	20-35	665	354	500
14	350	Q47H-600LB	Q47H600XLX14	889	892	603	527	413	70	6.4	20-38	738	389	600
16	400	Q47H-600LB	Q47H600XLX16	991	994	686	603	470	77	6.4	20-41	920	440	750
18	450	Q47H-600LB	Q47H600XLX18	1092	1095	743	654	533	83	6.4	20-44	1100	530	750
20	500	Q47H-600LB	Q47H600XLX20	1194	1200	813	724	584	89	6.4	24-44	1200	560	750
24	600	Q47H-600LB	Q47H600XLX24	1397	1407	940	838	692	102	6.4	24-52	1480	670	750
2	50	Q47H-900LB	Q47H900XLX2	368	371	216	165.1	92	38.5	6.4	8-26	250	98	300
2.5	65	Q47H-900LB	Q47H900XLX25	419	422	244	190.5	105	41.5	6.4	8-29	300	120	300
3	80	Q47H-900LB	Q47H900XLX3	381	384	241	190.5	127	38.5	6.4	8-26	345	140	300
4	100	Q47H-900LB	Q47H900XLX4	457	460	292	234.9	157	44.5	6.4	8-32	415	162	300
5	125	Q47H-900LB	Q47H900XLX5	559	562	349	279.4	186	51	6.4	8-35	446	188	300
6	150	Q47H-900LB	Q47H900XLX6	610	613	381	317.5	216	56	6.4	12-32	477	213	400
8	200	Q47H-900LB	Q47H900XLX8	737	740	470	393.7	270	63.5	6.4	12-39	520	270	400
10	250	Q47H-900LB	Q47H900XLX10	838	841	545	469.9	324	70	6.4	16-39	628	322	400
12	300	Q47H-900LB	Q47H900XLX12	965	968	610	533.4	381	79.5	6.4	20-39	680	360	500
14	350	Q47H-900LB	Q47H900XLX14	1029	1038	640	558.8	413	86	6.4	20-42	750	400	600
16	400	Q47H-900LB	Q47H900XLX16	1130	1140	705	615.9	470	89	6.4	20-45	940	460	750
1.5	40	Q47H-1500LB	Q47H1500XLX15	305	305	178	123.8	73	32	6.4	4-29	280	100	300
2	50	Q47H-1500LB	Q47H1500XLX2	368	371	216	165.1	92	38.5	6.4	8-26	320	113	300
2.5	65	Q47H-1500LB	Q47H1500XLX25	419	422	244	190.5	105	41.5	6.4	8-29	340	125	300
3	80	Q47H-1500LB	Q47H1500XLX3	470	473	267	203.2	127	48	6.4	8-32	385	138	300
4	100	Q47H-1500LB	Q47H1500XLX4	546	549	311	241.3	157	54	6.4	8-35	415	171	300
5	125	Q47H-1500LB	Q47H1500XLX5	673	676	375	292.1	186	73.5	6.4	8-42	480	200	400
6	150	Q47H-1500LB	Q47H1500XLX6	705	711	394	317.5	216	83	6.4	12-39	580	222	400
8	200	Q47H-1500LB	Q47H1500XLX8	832	841	483	393.7	270	92	6.4	12-45	584	280	400
10	250	Q47H-1500LB	Q47H1500XLX10	991	1000	585	482.6	324	108	6.4	12-51	650	340	500
12	300	Q47H-1500LB	Q47H1500XLX12	1130	1146	675	571.5	381	124	6.4	16-54	700	370	600
1.5	40	Q47H-2500LB	Q47H2500XLX15	384	387	203	146	73	44.5	6.4	4-32	290	105	300
2	50	Q47H-2500LB	Q47H2500XLX2	451	454	235	171.4	92	51	6.4	8-29	320	120	300
2.5	65	Q47H-2500LB	Q47H2500XLX25	508	514	267	196.8	105	57.5	6.4	8-32	350	130	300
3	80	Q47H-2500LB	Q47H2500XLX3	578	584	305	228.6	127	67	6.4	8-35	400	150	300
4	100	Q47H-2500LB	Q47H2500XLX4	673	683	356	273	157	76.5	6.4	8-42	425	180	400
5	125	Q47H-2500LB	Q47H2500XLX5	794	807	419	323.8	186	92.5	6.4	8-48	500	210	400
6	150	Q47H-2500LB	Q47H2500XLX6	914	927	483	368.3	216	108	6.4	8-54	590	230	500
8	200	Q47H-2500LB	Q47H2500XLX8	1022	1038	550	438.1	270	127	6.4	12-54	610	290	500
10	250	Q47H-2500LB	Q47H2500XLX10	1270	1292	675	539.7	324	165.5	6.4	12-67	660	350	600

Featuring trunnion‑mounted ball structure for stable opening‑closing, metal‑to‑metal hard‑seated construction adapted to severe‑service conditions, bi‑directional sealing for safe and reliable operation, fire‑safe and anti‑static design, the valve delivers long‑term service life and easy‑access maintenance.
