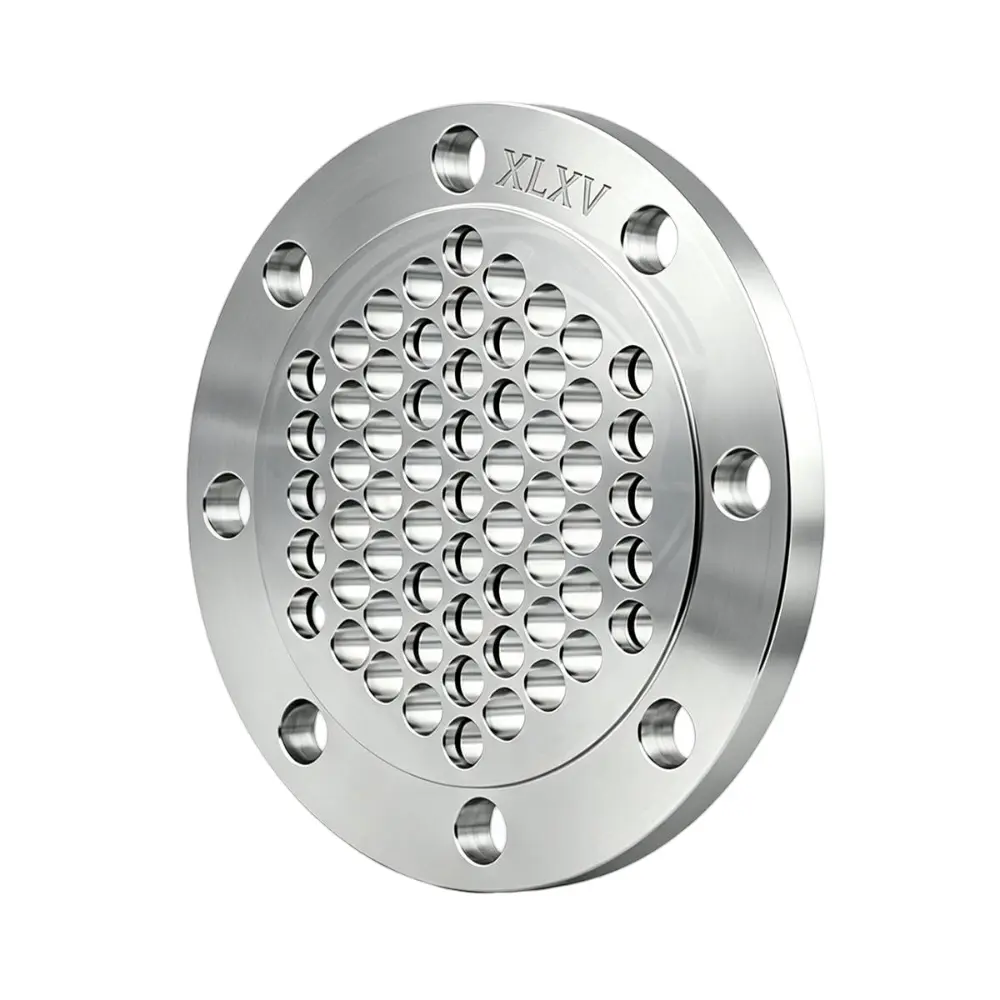

Tube Sheet Flange

Size Range: DN15-DN600 (1/2″- 24″)
Pressure Class: PN20-PN420 (Class 150 – Class 2500)
Sealing Faces: RF, FF, MFM, TG, RJ
Standards: ASME B16.5, ASME B16.47 Series A/B, EN1092-1, HG/T20592, HG/T20615, HG/T20623, JIS B2220
Materials: 20#, A105, LF2, F11/F22, 304, 316L, 2205, 2507, Alloy20, Hastelloy C, TA2
Media: Steam, oil, gas, acid/alkali, seawater, organic solvent, cryogenic medium
Temperature: -196℃ ~ 1000℃
Application: Oil&gas, petrochemical, power plant, marine, municipal water, metallurgy, environmental protection

Product details

Tube Sheet Flange is an integrated tube sheet and flange forged pressure component, widely used in shell and tube heat exchangers, condensers, boilers, reactors, and other pressure vessel equipment.

Unlike conventional piping flanges, the Tube Sheet Flange combines two essential functions in one forged structure:

The outer flange section provides a bolted sealing connection for equipment opening, maintenance access, and external piping connection.

The tube sheet section is precisely machined with a large number of tube holes for fixing heat transfer tubes, separating the tube-side and shell-side fluids.

It is a critical pressure-bearing component for special equipment and follows a completely different design philosophy from standard pipeline flanges.

Product Specifications

Note: The flange inner diameter (B) is determined by the wall thickness of the steel pipe and shall be specified by the user at the time of ordering.（Unit: mm）

TSF-150LB-2500LB

DN	NPS	Type/Class	Part No	D	K	L	Th	n	C	No. of tube holes	P	E	F	d	w	X	y	Z
15	0.5	TSF-150LB-SFT	XLXTSF150SFT05	90	60.3	16	M14	4	9.6	TBD
20	0.75	TSF-150LB-SFT	XLXTSF150SFT075	100	69.9	16	M14	4	11.2	TBD
25	1	TSF-150LB-SFT	XLXTSF150SFT1	110	79.4	16	M14	4	12.7	TBD	47.63	6.35	8.74
32	1.25	TSF-150LB-SFT	XLXTSF150SFT125	115	88.9	16	M14	4	14.3	TBD	57.15	6.35	8.74
40	1.5	TSF-150LB-SFT	XLXTSF150SFT15	125	98.4	16	M14	4	15.9	TBD	65.07	6.35	8.74
50	2	TSF-150LB-SFT	XLXTSF150SFT2	150	120.7	18	M16	4	17.5	TBD	82.55	6.35	8.74
65	2.5	TSF-150LB-SFT	XLXTSF150SFT25	180	139.7	18	M16	4	20.7	TBD	101.6	6.35	8.74
80	3	TSF-150LB-SFT	XLXTSF150SFT3	190	152.4	18	M16	4	22.3	TBD	114.3	6.35	8.74
100	4	TSF-150LB-SFT	XLXTSF150SFT4	230	190.5	18	M16	8	22.3	TBD	149.23	6.35	8.74
125	5	TSF-150LB-SFT	XLXTSF150SFT5	255	215.9	22	M20	8	22.3	TBD	171.45	6.35	8.74
150	6	TSF-150LB-SFT	XLXTSF150SFT6	280	241.3	22	M20	8	23.9	TBD	193.68	6.35	8.74
200	8	TSF-150LB-SFT	XLXTSF150SFT8	345	298.58	22	M20	8	27.0	TBD	247.65	6.35	8.74
250	10	TSF-150LB-SFT	XLXTSF150SFT10	405	362.0	26	M24	12	28.6	TBD	304.8	6.35	8.74
300	12	TSF-150LB-SFT	XLXTSF150SFT12	485	431.8	26	M24	12	30.2	TBD	381	6.35	8.74
350	14	TSF-150LB-SFT	XLXTSF150SFT14	535	476.2	30	M27	12	33.4	TBD	396.88	6.35	8.74
400	16	TSF-150LB-SFT	XLXTSF150SFT16	595	539.8	30	M27	16	35.0	TBD	454.03	6.35	8.74
450	18	TSF-150LB-SFT	XLXTSF150SFT18	635	577.9	33	M30	16	38.1	TBD	517.53	6.35	8.74
500	20	TSF-150LB-SFT	XLXTSF150SFT20	700	635.0	33	M30	20	41.3	TBD	558.8	6.35	8.74
600	24	TSF-150LB-SFT	XLXTSF150SFT24	815	749.3	36	M33	20	46.1	TBD	673.1	6.35	8.74
15	0.5	TSF-300LB-SFT	XLXTSF300SFT05	95	66.7	16	M14	4	12.7	TBD	34.14	5.54	7.14	46	25.4	34.9	36.5	23.8
20	0.75	TSF-300LB-SFT	XLXTSF300SFT075	115	82.6	18	M16	4	14.3	TBD	42.88	6.35	8.74	54	33.3	42.9	44.4	31.8
25	1	TSF-300LB-SFT	XLXTSF300SFT1	125	88.9	18	M16	4	15.9	TBD	50.8	6.35	8.74	62	38.1	50.8	52.4	36.5
32	1.25	TSF-300LB-SFT	XLXTSF300SFT125	135	98.4	18	M16	4	17.5	TBD	60.33	6.35	8.74	75	47.6	63.5	65.1	46
40	1.5	TSF-300LB-SFT	XLXTSF300SFT15	155	114.3	22	M20	4	19.1	TBD	68.27	6.35	8.74	84	54	73	74.6	52.4
50	2	TSF-300LB-SFT	XLXTSF300SFT2	165	127.0	18	M16	8	20.7	TBD	82.55	7.92	11.91	103	73	92.1	93.7	71.4
65	2.5	TSF-300LB-SFT	XLXTSF300SFT25	190	149.2	22	M20	8	23.9	TBD	101.6	7.92	11.91	116	85.7	104.8	106.4	84.1
80	3	TSF-300LB-SFT	XLXTSF300SFT3	210	168.3	22	M20	8	27.0	TBD	123.83	7.92	11.91	138	108	127	128.6	106.4
100	4	TSF-300LB-SFT	XLXTSF300SFT4	255	200.0	22	M20	8	30.2	TBD	149.23	7.92	11.91	168	131.8	157.2	158.8	130.2
125	5	TSF-300LB-SFT	XLXTSF300SFT5	280	235.0	22	M20	8	33.4	TBD	180.98	7.92	11.91	197	160.3	185.7	187.3	158.8
150	6	TSF-300LB-SFT	XLXTSF300SFT6	320	269.9	22	M20	12	35.0	TBD	211.12	7.92	11.91	227	190.5	215.9	217.5	188.9
200	8	TSF-300LB-SFT	XLXTSF300SFT8	380	330.2	26	M24	12	39.7	TBD	269.88	7.92	11.91	281	238.1	269.9	271.5	236.5
250	10	TSF-300LB-SFT	XLXTSF300SFT10	445	387.4	30	M27	16	46.1	TBD	323.85	7.92	11.91	335	285.8	323.8	325.4	284.2
300	12	TSF-300LB-SFT	XLXTSF300SFT12	520	450.8	33	M30	16	49.3	TBD	381	7.92	11.91	392	342.9	381	382.6	341.3
350	14	TSF-300LB-SFT	XLXTSF300SFT14	585	514.4	33	M30	20	52.4	TBD	419.1	7.92	11.91	424	374.6	412.8	414.3	373.1
400	16	TSF-300LB-SFT	XLXTSF300SFT16	650	571.5	36	M33	20	55.6	TBD	469.9	7.92	11.91	481	425.4	469.9	471.5	423..9
450	18	TSF-300LB-SFT	XLXTSF300SFT18	710	628.6	36	M33	24	58.8	TBD	533.4	7.92	11.91	544	489	533.4	535	487.4
500	20	TSF-300LB-SFT	XLXTSF300SFT20	775	685.8	36	M33	24	62.0	TBD	584.2	9.53	13.49	595	533.4	584.2	585.8	531.8
600	24	TSF-300LB-SFT	XLXTSF300SFT24	915	812.8	42	M39×3	24	68.3	TBD	692.15	11.13	16.66	703	641.4	692.2	693.7	639.8
15	0.5	TSF-600LB-SFT	XLXTSF600SFT05	95	66.7	16	M14	4	14.3	TBD	34.14	5.54	7.14	46	25.4	34.9	36.5	23.8
20	0.75	TSF-600LB-SFT	XLXTSF600SFT075	115	82.6	18	M16	4	15.9	TBD	42.88	6.35	8.74	54	33.3	42.9	44.4	31.8
25	1	TSF-600LB-SFT	XLXTSF600SFT1	125	88.9	18	M16	4	17.5	TBD	50.8	6.35	8.74	62	38.1	50.8	52.4	36.5
32	1.25	TSF-600LB-SFT	XLXTSF600SFT125	135	98.4	18	M16	4	20.7	TBD	60.33	6.35	8.74	75	47.6	63.5	65.1	46
40	1.5	TSF-600LB-SFT	XLXTSF600SFT15	155	114.3	22	M20	4	22.3	TBD	68.27	6.35	8.74	84	54	73	74.6	52.4
50	2	TSF-600LB-SFT	XLXTSF600SFT2	165	127.0	18	M16	8	25.4	TBD	82.55	7.92	11.91	103	73	92.1	93.7	71.4
65	2.5	TSF-600LB-SFT	XLXTSF600SFT25	190	169.2	22	M20	8	28.6	TBD	101.6	7.92	11.91	116	85.7	104.8	106.4	84.1
80	3	TSF-600LB-SFT	XLXTSF600SFT3	210	168.3	22	M20	8	31.8	TBD	123.83	7.92	11.91	138	108	127	128.6	106.4
100	4	TSF-600LB-SFT	XLXTSF600SFT4	275	215.9	26	M24	8	38.1	TBD	149.23	7.92	11.91	168	131.8	157.2	158.8	130.2
125	5	TSF-600LB-SFT	XLXTSF600SFT5	330	267	30	M27	8	45	TBD	180.98	7.92	11.91	197	160.3	185.7	187.3	158.8
150	6	TSF-600LB-SFT	XLXTSF600SFT6	355	292	30	M27	12	48	TBD	211.12	7.92	11.91	227	190.5	215.9	217.5	188.9
200	8	TSF-600LB-SFT	XLXTSF600SFT8	420	349	33	M30	12	56	TBD	269.88	7.92	11.91	281	238.1	269.9	271.5	236.5
250	10	TSF-600LB-SFT	XLXTSF600SFT10	510	431	36	M33	16	64	TBD	323.85	7.92	11.91	335	285.8	323.8	325.4	284.2
300	12	TSF-600LB-SFT	XLXTSF600SFT12	560	489	36	M33	20	67	TBD	381	7.92	11.91	392	342.9	381	382.6	341.3
350	14	TSF-600LB-SFT	XLXTSF600SFT14	605	527	39	M36X3	20	70	TBD	419.1	7.92	11.91	424	374.6	412.8	414.3	373.1
400	16	TSF-600LB-SFT	XLXTSF600SFT16	685	603	42	M39X3	20	76	TBD	469.9	7.92	11.91	481	425.4	469.9	471.5	423..9
450	18	TSF-600LB-SFT	XLXTSF600SFT18	745	654	45	M42X3	20	83	TBD	533.4	7.92	11.91	544	489	533.4	535	487.4
500	20	TSF-600LB-SFT	XLXTSF600SFT20	815	724	45	M42X3	24	89	TBD	584.2	9.53	13.49	595	533.4	584.2	585.8	531.8
600	24	TSF-600LB-SFT	XLXTSF600SFT24	940	838	51	M48X3	24	102	TBD	692.15	11.13	16.66	703	641.4	692.2	693.7	639.8
15	0.5	TSF-900LB-SFT	XLXTSF900SFT05	120	82.6	22	M20	4	22.3	TBD	39.67	6.35	8.74	46	25.4	34.9	36.5	23.8
20	0.75	TSF-900LB-SFT	XLXTSF900SFT075	130	88.9	22	M20	4	25.4	TBD	44.45	6.35	8.74	54	33.3	42.9	44.4	31.8
25	1	TSF-900LB-SFT	XLXTSF900SFT1	150	101.6	26	M24	4	28.6	TBD	50.8	6.35	8.74	62	38.1	50.8	52.4	36.5
32	1.25	TSF-900LB-SFT	XLXTSF900SFT125	160	111.1	26	M24	4	28.6	TBD	60.33	6.35	8.74	75	47.6	63.5	65.1	46
40	1.5	TSF-900LB-SFT	XLXTSF900SFT15	180	123.8	30	M27	4	31.8	TBD	68.27	6.35	8.74	84	54	73	74.6	52.4
50	2	TSF-900LB-SFT	XLXTSF900SFT2	215	165.1	26	M24	8	38.1	TBD	95.25	7.92	11.91	103	73	92.1	93.7	71.4
65	2.5	TSF-900LB-SFT	XLXTSF900SFT25	245	190.5	30	M27	8	41.3	TBD	107.95	7.92	11.91	116	85.7	104.8	106.4	84.1
80	3	TSF-900LB-SFT	XLXTSF900SFT3	240	190.5	26	M24	8	38.1	TBD	123.83	7.92	11.91	138	108	127	128.6	106.4
100	4	TSF-900LB-SFT	XLXTSF900SFT4	290	235	33	M30	8	44.5	TBD	149.23	7.92	11.91	168	131.8	157.2	158.8	130.2
125	5	TSF-900LB-SFT	XLXTSF900SFT5	350	279.4	36	M33	8	50.8	TBD	180.98	7.92	11.91	197	160.3	185.7	187.3	158.8
150	6	TSF-900LB-SFT	XLXTSF900SFT6	380	317.5	33	M30	12	55.6	TBD	211.12	7.92	11.91	227	190.5	215.9	217.5	188.9
200	8	TSF-900LB-SFT	XLXTSF900SFT8	470	393.7	39	M36x3	12	63.5	TBD	269.88	7.92	11.91	281	238.1	269.9	271.5	236.5
250	10	TSF-900LB-SFT	XLXTSF900SFT10	545	469.9	39	M36x3	16	69.9	TBD	323.85	7.92	11.91	335	285.8	323.8	325.4	284.2
300	12	TSF-900LB-SFT	XLXTSF900SFT12	610	533.4	39	M36x3	20	79.4	TBD	381	7.92	11.91	392	342.9	381	382.6	341.3
350	14	TSF-900LB-SFT	XLXTSF900SFT14	640	558.8	42	M39x3	20	85.8	TBD	419.1	11.13	16.66	424	374.6	412.8	414.3	373.1
400	16	TSF-900LB-SFT	XLXTSF900SFT16	705	616	45	M42x3	20	88.9	TBD	469.9	11.13	16.66	481	425.4	469.9	471.5	423..9
450	18	TSF-900LB-SFT	XLXTSF900SFT18	785	685.8	51	M48x3	20	101.6	TBD	533.4	12.7	19.84	544	489	533.4	535	487.4
500	20	TSF-900LB-SFT	XLXTSF900SFT20	855	749.3	55	M52x3	20	108.0	TBD	584.2	12.7	19.84	595	533.4	584.2	585.8	531.8
600	24	TSF-900LB-SFT	XLXTSF900SFT24	1040	901.7	68	M64x3	20	139.7	TBD	692.15	15.88	26.97	703	641.4	692.2	693.7	639.8
15	0.5	TSF-1500LB-SFT	XLXTSF1500SFT05	120	82.6	22	M20	4	22.3	TBD	39.67	6.35	8.74	46	25.4	34.9	36.5	23.8
20	0.75	TSF-1500LB-SFT	XLXTSF1500SFT075	130	88.9	22	M20	4	25.4	TBD	44.45	6.35	8.74	54	33.3	42.9	44.4	31.8
25	1	TSF-1500LB-SFT	XLXTSF1500SFT1	150	101.6	26	M24	4	28.6	TBD	50.8	6.35	8.74	62	38.1	50.8	52.4	36.5
32	1.25	TSF-1500LB-SFT	XLXTSF1500SFT125	160	111.1	26	M24	4	28.6	TBD	60.33	6.35	8.74	75	47.6	63.5	65.1	46
40	1.5	TSF-1500LB-SFT	XLXTSF1500SFT15	180	123.8	30	M27	4	31.8	TBD	68.27	6.35	8.74	84	54	73	74.6	52.4
50	2	TSF-1500LB-SFT	XLXTSF1500SFT2	215	165.1	26	M24	8	38.1	TBD	95.25	7.92	11.91	103	73	92.1	93.7	71.4
65	2.5	TSF-1500LB-SFT	XLXTSF1500SFT25	245	190.5	30	M27	8	41.3	TBD	107.95	7.92	11.91	116	85.7	104.8	106.4	84.1
80	3	TSF-1500LB-SFT	XLXTSF1500SFT3	265	203.2	33	M30	8	47.7	TBD	136.53	7.92	11.91	138	108	127	128.6	106.4
100	4	TSF-1500LB-SFT	XLXTSF1500SFT4	310	241.3	36	M33	8	54.0	TBD	161.93	7.92	11.91	168	131.8	157.2	158.8	130.2
125	5	TSF-1500LB-SFT	XLXTSF1500SFT5	372	292.1	42	M39x3	8	73.1	TBD	193.68	7.92	11.91	197	160.3	185.7	187.3	158.8
150	6	TSF-1500LB-SFT	XLXTSF1500SFT6	395	317.5	39	M36x3	12	82.6	TBD	211.14	9.53	13.49	227	190.5	215.9	217.5	188.9
200	8	TSF-1500LB-SFT	XLXTSF1500SFT8	485	393.7	45	M42x3	12	92.1	TBD	269.88	11.13	16.66	281	238.1	269.9	271.5	236.5
250	10	TSF-1500LB-SFT	XLXTSF1500SFT10	585	482.6	51	M48x3	12	108.0	TBD	323.85	11.13	16.66	335	285.8	323.8	325.4	284.2
300	12	TSF-1500LB-SFT	XLXTSF1500SFT12	675	571.5	55	M52x3	16	123.9	TBD	381	14.27	23.01	392	342.9	381	382.6	341.3
350	14	TSF-1500LB-SFT	XLXTSF1500SFT14	750	635.0	60	M56x3	16	133.4	TBD	419.1	15.88	26.97	424	374.6	412.8	414.3	373.1
400	16	TSF-1500LB-SFT	XLXTSF1500SFT16	825	704.8	68	M64x3	16	146.1	TBD	469.9	17.48	30.18	481	425.4	469.9	471.5	423..9
450	18	TSF-1500LB-SFT	XLXTSF1500SFT18	915	774.7	74	M70x3	16	162.0	TBD	533.4	17.48	30.18	544	489	533.4	535	487.4
500	20	TSF-1500LB-SFT	XLXTSF1500SFT20	985	831.8	80	M76x3	16	177.8	TBD	584.2	17.48	33.32	595	533.4	584.2	585.8	531.8
600	24	TSF-1500LB-SFT	XLXTSF1500SFT24	1170	990.6	94	M90x3	16	203.2	TBD	692.15	20.62	36.53	703	641.4	692.2	693.7	639.8
15	0.5	TSF-2500LB-SFT	XLXTSF2500SFT05	135	88.9	22	M20	4	30.2	TBD	42.88	6.35	8.74	46	25.4	34.9	36.5	23.8
20	0.75	TSF-2500LB-SFT	XLXTSF2500SFT075	140	95.2	22	M20	4	31.8	TBD	50.8	6.35	8.74	54	33.3	42.9	44.4	31.8
25	1	TSF-2500LB-SFT	XLXTSF2500SFT1	160	108.0	26	M24	4	35.0	TBD	60.33	6.35	8.74	62	38.1	50.8	52.4	36.5
32	1.25	TSF-2500LB-SFT	XLXTSF2500SFT125	185	130.2	30	M27	4	38.1	TBD	72.23	7.92	11.91	75	47.6	63.5	65.1	46
40	1.5	TSF-2500LB-SFT	XLXTSF2500SFT15	205	146.0	33	M30	4	44.5	TBD	82.55	7.92	11.91	84	54	73	74.6	52.4
50	2	TSF-2500LB-SFT	XLXTSF2500SFT2	235	171.4	30	M27	8	50.9	TBD	101.6	7.92	11.91	103	73	92.1	93.7	71.4
65	2.5	TSF-2500LB-SFT	XLXTSF2500SFT25	265	196.8	33	M30	8	57.2	TBD	111.13	9.52	13.49	116	85.7	104.8	106.4	84.1
80	3	TSF-2500LB-SFT	XLXTSF2500SFT3	305	228.6	36	M33	8	66.7	TBD	127	9.53	13.49	138	108	127	128.6	106.4
100	4	TSF-2500LB-SFT	XLXTSF2500SFT4	355	273.0	42	M39x3	8	76.2	TBD	157.18	11.13	16.66	168	131.8	157.2	158.8	130.2
125	5	TSF-2500LB-SFT	XLXTSF2500SFT5	420	323.8	48	M45x3	8	92.1	TBD	190.5	12.7	19.84	197	160.3	185.7	187.3	158.8
150	6	TSF-2500LB-SFT	XLXTSF2500SFT6	485	358.3	55	M52x3	8	108.0	TBD	228.6	12.7	19.84	227	190.5	215.9	217.5	188.9
200	8	TSF-2500LB-SFT	XLXTSF2500SFT8	550	438.2	55	M52x3	12	127.0	TBD	279.4	14.27	23.01	281	238.1	269.9	271.5	236.5
250	10	TSF-2500LB-SFT	XLXTSF2500SFT10	675	539.8	68	M64x3	12	165.1	TBD	342.9	17.48	30.18	335	285.8	323.8	325.4	284.2
300	12	TSF-2500LB-SFT	XLXTSF2500SFT12	760	619.1	74	M70x3	12	184.2	TBD	406.4	17.48	33.32	392	342.9	381	382.6	341.3

The Tube Sheet Flange adopts an integral forged design, providing:

High mechanical strength and excellent pressure resistance，Superior structural integrity and reliability，Precise tube hole arrangement for heat exchanger tube installation，Reliable separation between tube-side and shell-side media，Excellent sealing performance under high-pressure and high-temperature conditions

The flange section enables convenient equipment opening, inspection, and pipeline connection, while the tube sheet section supports the heat exchanger tube bundle and withstands differential pressure between two process systems.
